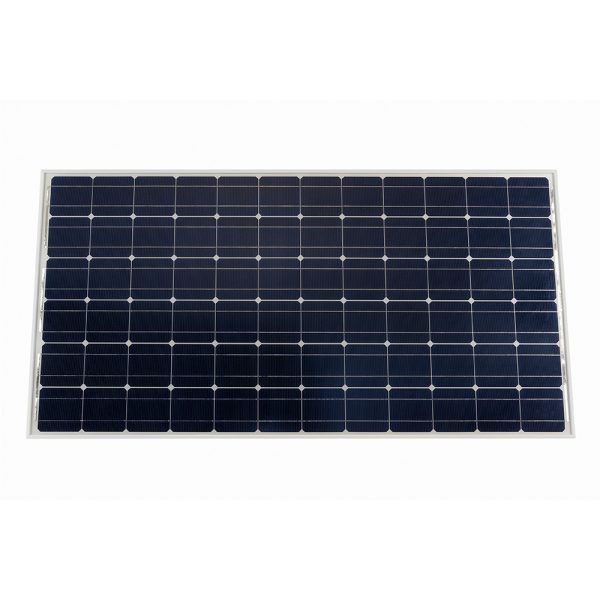

Victron BlueSolar Monocrystalline Panels

€ 35,90

1-2 weeks delivery time
Price incl. 19% VAT

Type:

20W-12V
30W-12V
40W-12V
55W-12V
90W-12V
130W-12V
185W-12V
215W-24V
305W-20V
360W-24V

Size, mm:

440×350×25
560×350×25
425×668×25
545×668×25
780×668×30
1200×668×30
1485×668×30
1580×705×35
1658×1002×35
1980×1002×40

Victron BlueSolar Monocrystalline Panels deliver high performance in compact formats, offering exceptional efficiency even under low-light conditions. Ranging from 20W to 360W, these panels feature a low voltage-temperature coefficient, durable anodized aluminium frame, impact-resistant tempered glass, and pre-wired MC4 connectors. Ideal for marine, RV, and off-grid use.

Description
Ask a Question

Victron BlueSolar Monocrystalline Panels are designed to provide reliable solar power in a range of demanding environments, including marine vessels, caravans, and remote off-grid systems. These panels are built with high-quality monocrystalline cells to ensure superior energy yield and long-term performance.

Key Features:

Monocrystalline cell technology for high efficiency.
Low voltage-temperature coefficient enhances performance in high temperatures.
Outstanding low-light performance and broad light spectrum sensitivity.
Sealed, waterproof, multi-functional junction box for high safety standards.
Advanced EVA encapsulation with triple-layer back sheet for high-voltage safety.
High-performance bypass diodes minimize power loss due to shading.
Tempered high-transmission glass offers rigidity and impact resistance.
Durable anodized aluminium frame for easy mounting with standard systems.
Pre-wired quick-connect system with MC4 (PV-ST01) connectors on larger models.

Technical Specifications:

Model	Nominal Power	Voltage @ Max Power (Vmp)	Current @ Max Power (Imp)	Open Circuit Voltage (Voc)	Short Circuit Current (Isc)	Dimensions (mm)	Weight (kg)
SPM040201200	20W - 12V	18.5	1.09	22.6	1.19	440×350×25	1.9
SPM040301200	30W - 12V	18.7	1.61	22.87	1.76	560×350×25	2.2
SPM040401200	40W - 12V	18.3	2.19	22.45	2.40	425×668×25	3.1
SPM040551200	55W - 12V	18.8	2.94	22.9	3.22	545×668×25	4
SPM040901200	90W - 12V	19.6	4.59	24.06	5.03	780×668×30	6.1
SPM041301200	130W - 12V	18.64	6.98	22.83	7.35	1200×668×30	9.1
SPM041501200	150W - 12V	18.2	8.25	22.3	8.69	1485×668×30	11
SPM041851200	185W - 12V	19.68	9.41	24.11	9.91	1485×668×30	11
SPM042152402	215W - 24V	40.1	5.36	46.01	5.65	1580×705×35	11.7
SPM043052002	305W - 20V	32.5	9.38	39.7	10.27	1658×1002×35	19
SPM043602402	360W - 24V	38.4	9.38	47.4	10.24	1980×1002×40	23

Additional Specifications:

Temperature Range: -40°C to +85°C
Max System Voltage: 1000V
Output Tolerance: ±3%
Temperature Coefficients:
- MPP: -0.45%/°C
- Voc: -0.35%/°C
- Isc: +0.04%/°C
Surface Load Capacity: 200 kg/m²
Hail Resistance: 23 m/s, 7.53 g
Warranty:
- 5 years – product materials and workmanship
- 10 years at 90%, 25 years at 80% of rated output

Perfect for marine, RV, and off-grid installations, Victron BlueSolar Monocrystalline Panels are engineered for durability, reliability, and maximum energy yield in real-world conditions.
