SKU:
CN SB-C100JB
€ 234,68
1-2 weeks delivery time
-
+
The SUNBEAMsystem Classic 100W Solar Panel is designed for efficient energy production, ideal for various applications. It offers reliable performance with key features such as a maximum power of 100 Wp, 17.6V operating voltage, and an IP67 junction box protection.
- Description
- Ask a Question
-

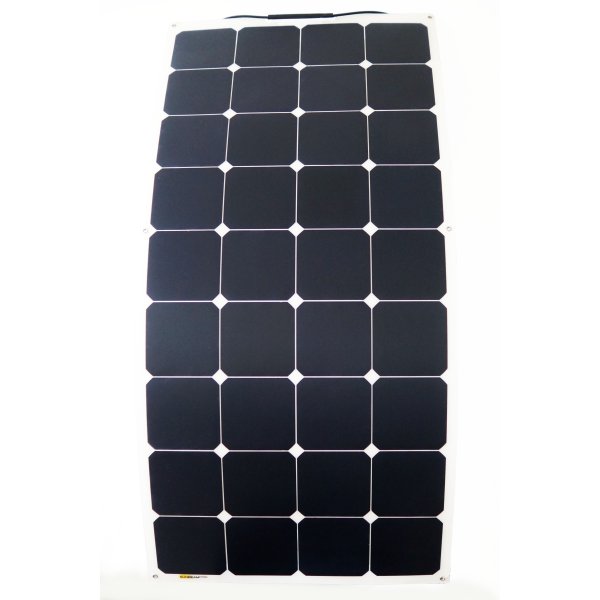

SUNBEAMsystem Classic 100W Solar Panel
Introducing the SUNBEAMsystem Classic 100W Solar Panel, designed to deliver efficient and reliable energy. Ideal for various applications, this panel ensures optimal performance in diverse conditions.
- Maximum Power (Pmax): 100 Wp
- Voltage at Maximum Power (Vmpp): 17.6 V
- Current at Maximum Power (Impp): 5.62 A
- Open Circuit Voltage (Voc): 21.6 V
- Short Circuit Current (Isc): 5.97 A
- Standard Test Conditions (STC): Air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C
Material Data for SUNBEAMsystem Classic 100W Solar Panel
Durability and precision are key in the construction of the SUNBEAMsystem Classic 100W Solar Panel. Below are the material details that ensure long-lasting performance:
- Panel Dimensions (H/W/D): 1185 x 540 mm
- Weight: 1.9 kg
- Junction Box Protection Class: IP 67
- Connector Type: MC4
- Cable Cross-Section: 2.5 mm²
- Cable Length: 1600 mm
-
