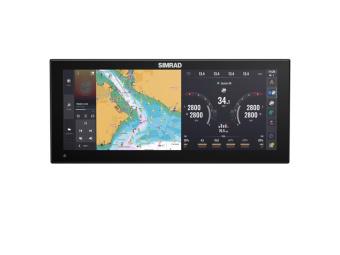

Simrad NSX 3015 UW with Active Imaging™ 3-in-1

Simrad NSX 3015 UW with Active Imaging™ 3-in-1 Display

The Simrad NSX 3015 UW with Active Imaging™ 3-in-1 Display is a high-quality product designed for marine use. Its sleek design and advanced features make it the perfect choice for any boating enthusiast.

Featuring a stunning display with a resolution of 1920 x 720 pixels, this display offers crystal-clear visuals that are easy to read even in bright sunlight. With a brightness level of over 1000 nits, you can expect excellent visibility in any lighting condition.

The Simrad NSX 3015 UW also boasts wide viewing angles of 85°, ensuring that you can easily see the screen from various positions on your boat.

In terms of physical specifications, this display is designed to withstand the harsh marine environment. It is compass safe up to 50 cm (1.7 ft) and comes with a rear mount bracket for easy installation. The dimensions without the bracket and suncover are W: 390.0 mm (15.55"), H: 170.4 mm (6.71"), and D: 88.5 mm (3.48"). With the gimbal bracket, the dimensions are H: 180.0 mm (7.10") and D: 96.5 mm (3.80"). The display weighs 1.9 kg (4.2 lbs), making it lightweight and easy to handle.

When it comes to electrical specifications, the Simrad NSX 3015 UW has a maximum power consumption of 25 W (1811 mA at 13.8 V) and requires a recommended fuse rating of 3A. It operates on a supply voltage of 12 V DC (10 - 17 V DC min - max), ensuring compatibility with most marine electrical systems.

Designed to withstand extreme marine conditions, this display has a waterproof rating of IPx6 and IPx7, providing peace of mind even in the harshest environments.

Whether you're a professional fisherman or a recreational boater, the Simrad NSX 3015 UW with Active Imaging™ 3-in-1 Display is the perfect companion for your marine adventures.
