SKU:
EX 000-15557-002
€ 7.994,76
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Simrad NSS12 Evo3S is a versatile 12-inch multifunction display designed for navigation and boating, featuring a SolarMAX™ IPS screen for enhanced visibility. It boasts a robust set of specifications including an 800 x 1280 resolution, 1200 nits brightness, and a comprehensive range of connectivity options such as Bluetooth, Wi-Fi, and Ethernet. Key features include an integrated GPS, high-performance echosounder, and support for various accessories like sonar and radar, along with TripIntel™ for smart trip planning. The unit is built to withstand harsh environmental conditions and is easy to mount either flush or with a bracket.
- Description
- Ask a Question
-

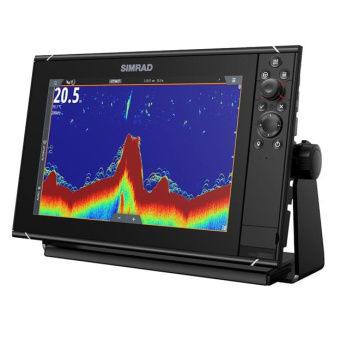

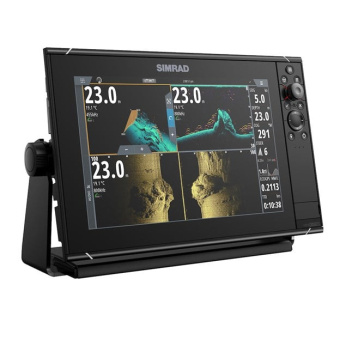

Simrad NSS12 Evo3S With Worldwide Base Map & HALO20+ Radar
The Simrad NSS12 Evo3S is an advanced multifunction display that combines powerful features for navigation and boating. Its 12-inch SolarMAX™ IPS screen ensures a clear view from various angles, making it reliable in any situation.
- Product Number: 000-15557-002
- Specifications:
- Display:
- Backlight Color: White
- Display Resolution: 800 x 1280
- Screen Brightness: 1200 nits
- Viewing Angles: 80° top/bottom, 80° left/right
- Physical:
- Compass Safe: 50 cm (1.7 ft)
- Dimensions: W x H x D: 352 x 225 x 98 mm (13.84 x 8.87 x 3.82") with bracket: 377 x 241 x 120 mm (14.85 x 9.47 x 4.71")
- Mounting Type: Bracket (Supplied) or panel mount
- Weight: 3.1 kg (6.83 lbs.)
- Electrical:
- Power Consumption max: 28 W
- Recommended Fuse Rating: 5A
- Supply Voltage: 10 - 31.2 V DC
- Environment:
- Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)
- Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
- Shock Vibration: 100,000 cycles of 20 G
- Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
- Waterproof rating: IPX6 and 7
- Connectivity:
- Bluetooth: Internal
- Ethernet Ports: 2 x 5 pin yellow connector x 10/100 Mbit
- Wi-Fi: Internal
- Key Features:
- iMX 8 integrated processor for superior performance
- Switch seamlessly between touchscreen and keypad control
- Built-in high-performance echosounder with 1kW CHIRP
- Integrated GPS receiver and wireless connectivity
- Control Simrad sonar, radar, autopilot, and other accessories
- Industry-standard connectivity to engines, sound system, and more
- TripIntel™ trip planning and support for automatic routing
- Choose low-profile flush mounting or convenient bracket mounting
- Download the Simrad App and connect with smartphones, tablets, and internet hotspots
- Includes world basemap and HALO™ Pulse Compression radar
- Supports SteadySteer™, an autopilot performance enhancement for NAC-2 and NAC-3 autopilot computers fitted with RPU drive pumps
- Compatible with a CZone® digital switching device, enabling control from the MFD via the NMEA 2000 network
- Mercury® Smart Tow® enabled for wake shaping
-
