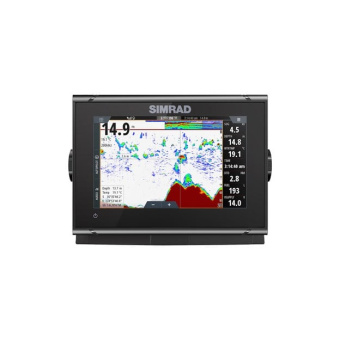

Simrad GO7 XSR With HDI XDCR (Med/High/Downscan Transducer)

Simrad GO7 XSR With HDI XDCR (Med/High/Downscan Transducer)

The Simrad GO7 XSR With HDI XDCR is an advanced marine display that offers incredible features and functionality. With its high-definition imaging and powerful transducer, this device provides a clear and detailed view of the underwater world.

The display of the Simrad GO7 XSR features a white backlight color, ensuring excellent visibility even in bright sunlight. With an impressive resolution of 800x480, you can expect sharp and vibrant images on the screen. The screen brightness of 1200 nits further enhances the visibility, making it easy to read in any lighting condition.

Thanks to the wide viewing angles of 80° top/bottom and 80° left/right, you can comfortably view the display from various positions without any distortion or loss of image quality.

In terms of physical dimensions, the Simrad GO7 XSR measures 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") without the bracket. It can be easily mounted using either a bracket or panel, providing flexibility in installation. Despite its compact size, it weighs 1.320 kg (2.91 lb), ensuring durability and stability.

When it comes to electrical specifications, the Simrad GO7 XSR has a maximum power consumption of 20 W and a typical power consumption of 12 W. It is recommended to use a 3A fuse rating for optimal performance. The device operates within a supply voltage range of 10 - 17 V DC.

In terms of environmental suitability, the Simrad GO7 XSR can withstand a wide range of temperatures. It has an operating temperature range of -15°C to +55°C (5° F to 131° F) and a storage temperature range of -20°C to +60°C (4°F to 140°F). With an IPX 6 and 7 waterproof rating, this device is well-protected against water damage.

Experience the ultimate marine display with the Simrad GO7 XSR With HDI XDCR. Its advanced features, high-definition imaging, and durable design make it an ideal choice for any boating or fishing enthusiast.
