SKU:
BP PF AN NVHF00042
$ 285,43
1-2 weeks delivery time
-
+
The Scout Quick 6 Black Edition is a 2.4 m high-performance VHF fiberglass antenna with 6 dB gain, designed for long-range communication. Its QuickFit system allows easy installation without special tools, and the antenna is fully waterproof with a heavy-duty fiberglass whip. It includes a 1″ x 14 thread adaptor mount, FME Male connector, and is constructed with brass and copper elements for durability.
- Description
- Ask a Question
-
Scout Quick 6 Black Edition 6 dB High Performance VHF Fiberglass Antenna 2,4 m (8’) Length, QuickFit
The Scout Quick 6 Black Edition represents a new generation of ready-to-install marine antennas. Designed for effortless setup, these antennas require no special tools or RF connectors, thanks to the QuickFit system. Fully waterproof with Scout’s foam injection technology, they are robust, reliable, and ideal for long-range VHF communication.
- Frequency: 156-162 MHz
- Impedance: 50 ohm
- Electrical length: 1/2 λ
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: 6 dB
- Max power input: 50 W
- DC ground: Yes
- Whip material: Fiberglass

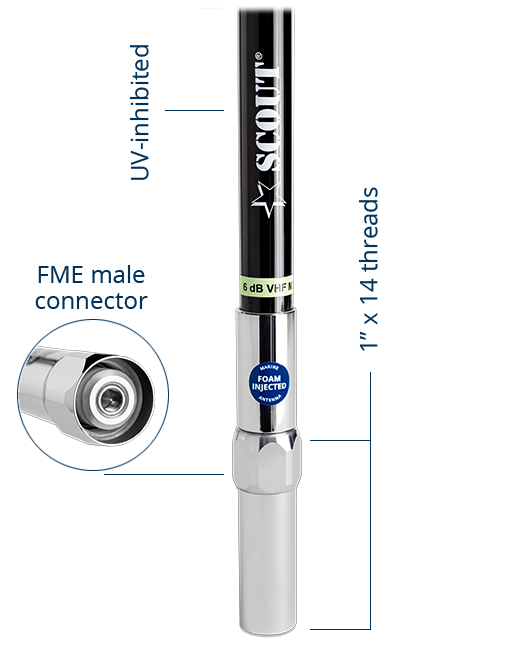

- Connector: FME Male
- Mounting: 1″ x 14 thread adaptor
- Length: 2,4 m (8′)
- Weight: 0,95 kilo
- Code: PF AN NVHF00042

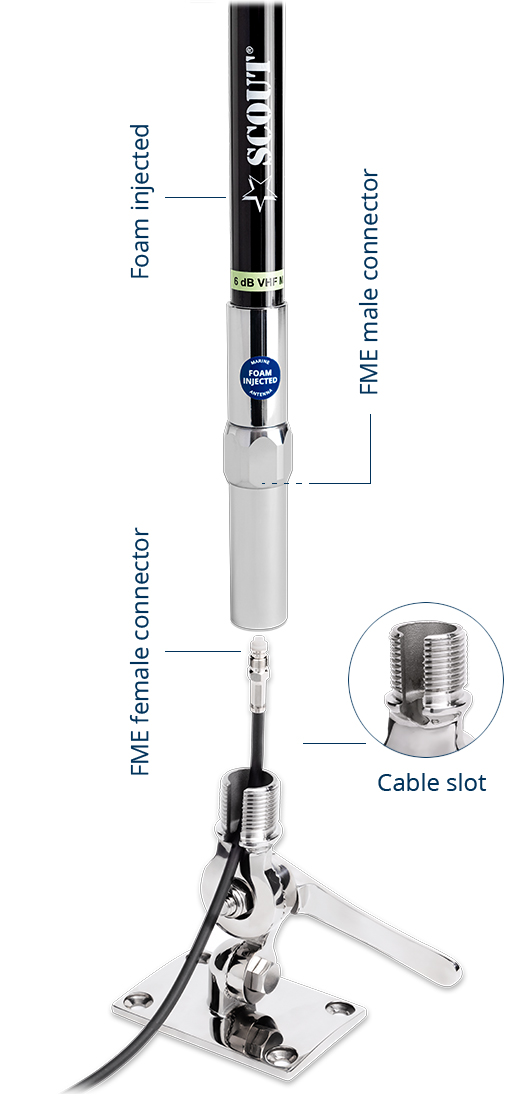

The Quick 6 Black Edition is constructed with solid brass and copper elements, encased in a 1.5 mm thick heavy-duty fiberglass whip. Its sleek black high-gloss finish combines durability with style. The antenna is easily removable from its mount using the lock nut, making storage and transport simple. Standard PA-30 and PA-31 mounts are recommended for optimal installation.
-
