SKU:
BP PF AN NVHF00001
$ 72,94
1-2 weeks delivery time
-
+
The Scout KS-21 is a compact 1.0 m VHF fiberglass antenna designed for small boats and RIBs, providing reliable VHF performance. It features a fully waterproof fiberglass whip with high gloss anti-UV coating, 3 dB gain, vertical polarization, 50-ohm impedance, and a maximum power input of 50 W. The antenna comes with 5 m of RG 58 CU MIL coaxial cable and mounts using a 1″ x 14 thread.
- Description
- Ask a Question
-
Scout KS-21 - 3 dB VHF Fiberglass Antenna 1,0 m (3.3′) Length

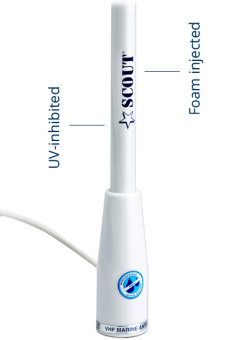

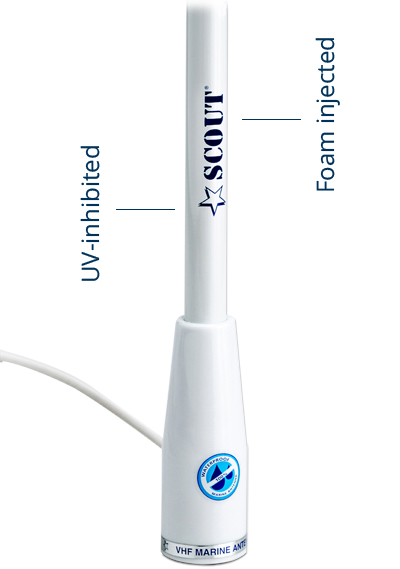

The Scout KS-21 is designed for small boats and RIBs, delivering excellent VHF performance despite its compact 1,0 m (3.3′) length. It combines durability and reliability with a fully waterproof fiberglass whip and a high gloss anti-UV coating.
- Frequency: 156-162 MHz
- Impedance: 50 ohm
- Electrical length: 1/2 λ
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: 3 dB
- Max power input: 50 W
- DC ground: Yes
- Whip material: Fiberglass

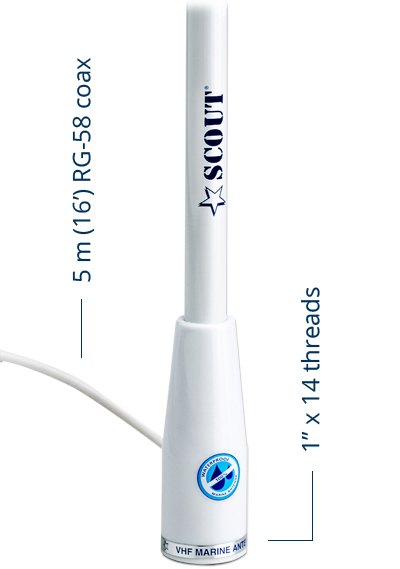

- Coaxial cable: 5 m (16,4′) RG 58 CU MIL
- Mounting: 1″ x 14 thread
- Length: 1,0 m (3.3′)
- Weight: 0,39 kilo
- Code / Item number: PF AN NVHF00001
-
