SKU:
BP PF AN NTV006
$ 459,85
1-2 weeks delivery time
-
+
The Scout Big Wave high-performance omnidirectional TV antenna has a 25 cm dome, captures analogue and digital TV, FM, and DAB signals with 360° reception, includes a Sea-Boost amplifier with adjustable gain, comes with 20 m RG-6 coaxial cable, and is compatible with a standard 1″ base. Item number PF AN NTV006.
- Description
- Ask a Question
-

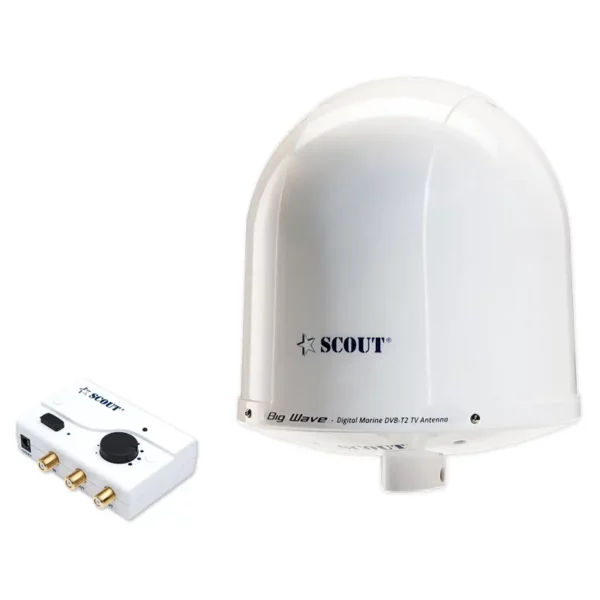

Scout Big Wave High Performance Omnidirectional TV Antenna d.25 cm (10″)
The Scout Big Wave represents the highest development in digital terrestrial TV antennas for marine applications. Designed for superior reception, it captures all analogue and digital terrestrial TV, FM, and DAB signals with a full 360° omnidirectional range. Its 25 cm dome is built with ASA material resistant to UV rays and harsh marine conditions, ensuring durability and protection against water and atmospheric agents.
With its internal multiple dipole configuration, operating in both vertical and horizontal polarization, the antenna ensures excellent reception quality and stable signal transmission. The included Sea-Boost amplifier, a low-noise amplifier with adjustable gain control, enhances TV, FM, and DAB signals efficiently. Two amplifier outputs allow connections for both television and FM radio, with the option to expand using splitters. The package also comes with 20 m of RG-6 dual-screen coaxial cable and F-type connectors for reliable installation. Compatible with a standard 1″ base (sold separately).
- Reception: Omnidirectional 360°
- Frequency: 40-790 MHz
- Impedance: 75 ohm
- Polarization: Vertical + Horizontal
- Channels: 2-69
- Gain: 0-18 dB
- Max power input: 12-24V x 50mA DC
- Noise level: <4 dB
- Amplifier outputs: 2
- Connector: F
- Antenna diameter: 25 cm (10″)
- Antenna height: 30 cm (11.8″)
- Weight: 950 gr
- Material: ASA UV inhibited
- Item number: PF AN NTV006
-
