Scout 5G/WiFi OnBoard Compact+SIM+Antenna Black (USA)

Scout 5G/WiFi OnBoard Compact+SIM+Antenna Black (USA)

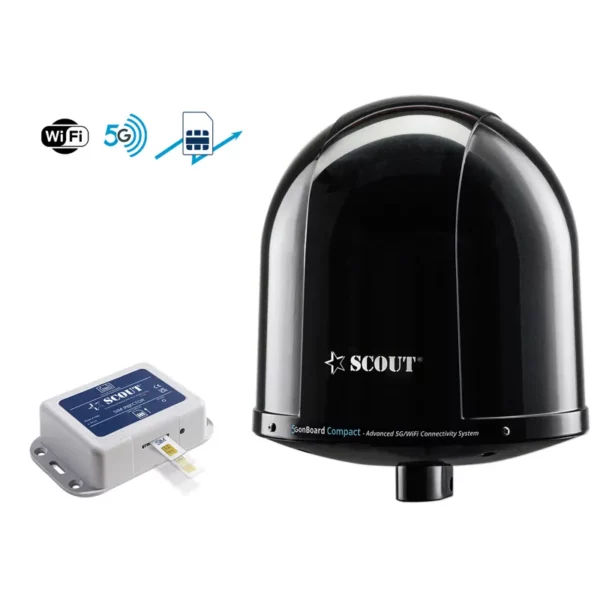

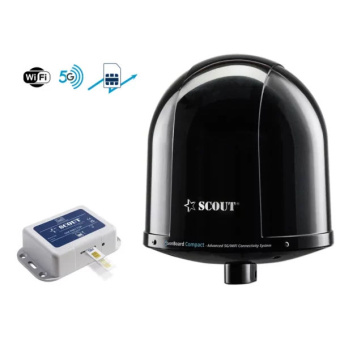

The Scout 5G/WiFi OnBoard Compact offers an advanced all-in-one Internet solution for boats, providing 5G connectivity to support up to 150 users at once. This system combines high-speed wireless and wired networking in a compact dome (25 cm Ø) and is designed for easy remote activation via the Scout SIM Extender.

• Contents:
  • 1 x 5G antenna dome
  • 1 x SIM Extender
  • 2 x RJ45 Ethernet coupler
  • 1 x User manual
• The SIM Extender allows placement anywhere on the boat, connecting to the dome with a standard RJ45 Ethernet cable up to 100 meters long, ensuring uninterrupted SIM data transmission without signal loss.
• The dome includes an additional LAN Ethernet port for setting up a wired network onboard, ideal for larger or aluminum boats.
• The SIM Extender eliminates the need to access the onboard router to manage the SIM card, enabling easy replacement while traveling internationally and optimal connectivity with local SIM cards.
• The system avoids radio frequency cables, reducing signal loss and allowing more efficient planning of onboard Internet coverage.
• Technical features:
  • 4 x 5G antennas with MIMO technology
  • Carrier aggregation, Cat 20, up to 3.3 Gbps
  • Dual-band WiFi at 2.4/5 GHz
  • Wireless management via user-friendly app (iOS and Android)
  • Wired management via LAN Ethernet cable
• Plug&play operation with only a 12V power cable required (included); the SIM Extender is powered directly by the Ethernet cable connecting it to the dome.
• Connectivity range up to 20 miles from the coast with full backward compatibility to 4G and 3G networks in case of 5G signal loss.
• Supports connection for multiple devices such as chartplotters, radios, smart TVs, IP cameras, tablets, and smartphones.
• Enables smooth HD streaming on Netflix, Amazon Prime, Disney Plus, music streaming via Spotify, and other platforms.
• Item number: PF AN NWIFI32
