Scout 5G OnBoard Compact Advanced 5G/WiFi Connectivity System With SIM Extender (Europe)

Scout 5G OnBoard Compact Advanced 5G/WiFi Connectivity System With SIM Extender (Europe)

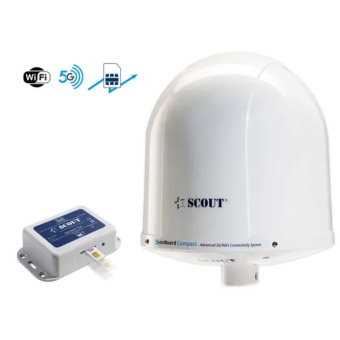

The Scout 5G OnBoard Compact delivers high-speed 5G Internet for boats, supporting up to 150 users at the same time. This compact system integrates advanced 5G connectivity into a single 25 cm Ø dome, offering both wireless and wired Internet access. Remote activation is handled through the Scout SIM Extender, ensuring seamless connection regardless of dome placement.

• Contents:
  • 1 x 5G antenna dome
  • 1 x SIM Extender
  • 2 x RJ45 Ethernet coupler
  • 1 x User manual
• The SIM Extender allows flexible placement for easy SIM card access and requires no separate power cable, as it receives power via a standard RJ45 Ethernet cable (up to 100 meters). This setup eliminates the need to access the on-board router and allows for quick SIM replacement when traveling internationally, optimizing connectivity and data usage.
• The dome provides an extra LAN Ethernet port for building a wired network onboard, which is especially useful for larger or aluminum boats. This eliminates reliance on radio frequency cables, minimizing signal loss and improving overall system performance.
• Technical Features:
  • 4 x 5G antennas with MIMO technology
  • Carrier aggregation, Cat 20 up to 3.3 Gbps
  • Dual-band WiFi (2.4/5 GHz)
  • Remote management via user-friendly app for iOS and Android, or wired LAN mode
  • Plug & play system requiring only a 12V power cable (included)
  • SIM Extender powered through Ethernet cable
  • 5G coverage up to 20 miles from the coast, fully backward compatible with 4G and 3G
  • LAN speed up to 1000 Mbps for wired devices
• The system transforms any boat into a high-performance Internet hub. It supports multiple devices including chartplotters, radios, smart TVs, IP cameras, tablets, and smartphones. High-speed 5G ensures smooth HD streaming and music services such as Netflix, Amazon Prime, Disney Plus, and Spotify.
• System setup and remote control are handled through an intuitive app for iOS and Android, making the Scout 5G OnBoard Compact both easy to install and manage.
• Item number: PF AN NWIFI21
