The Samlex WSC-1230SB is a 12V 30A automatic 4-stage charger for various lead-acid battery types. It includes a DIP switch for two-stage charging, supports two battery banks, starter battery output, and provides overload and short circuit protection.
- Description
- Ask a Question
-

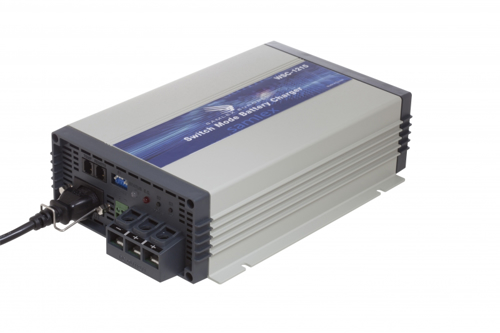

Samlex WSC-1230SB - Battery Charger 12V30A
The Samlex WSC-1230SB is an advanced, fully automatic 4-stage 30 Amp charger designed for 12 Volt lead-acid batteries, including Flooded, AGM, Gel, and Li-Ion types. It features a DIP switch to select a two-stage charging mode suitable for batteries connected to DC loads (DC UPS). The charger also serves as a DC power supply and includes protection against overload and short circuits. It supports charging two separate battery banks and offers a starter battery output.
- Order number: 00711193
- Supplier code: 57315
- Barcode: 8718013573153
- Input voltage: 100 - 240 VAC
- Output voltage: 14.8 - 13.5 + 13.8 VDC
- Output ports: 2
- Charging current: 30/2 A
- Dimensions (LxWxH): 265 x 171 x 70 mm
- Battery capacity supported: Max. 300 Ah
- Weight: 1.6 kg
- Model: 1230SB
- Innovative product design
- ISO 9001-2015 certified
-
