SKU:
TN 00711125
€ 326,18
1-2 weeks delivery time
-
+
The SDC-60 is engineered for high current applications, offering a compact DC-DC converter with 13.8V output at 60A continuous current from a 20-35V input, featuring advanced switch-mode power conversion and extensive protection circuits to ensure reliable and efficient operation.
- Description
- Ask a Question
-

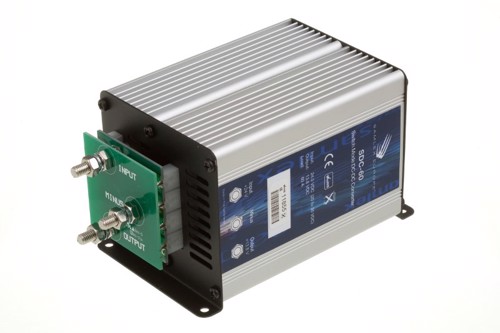

Samlex SDC-60 - DC-DC Converter / 20-35V>13.8V 60A
The SDC-60 is engineered for high current applications requiring dependable voltage output, minimal heat dissipation, and efficient power usage. It is designed with robust protective circuits and fits easily into various setups.
- Advanced switch-mode power conversion design
- Very efficient operation
- Easy mounting in many environments
- Cycle through current limiting circuit
- Compact and lightweight design
- Reverse polarity protection
- Overvoltage protection
- Short circuit protection
- Order number: 00711125
- Supplier code: 62225
- Barcode: 8718013622257
- Input voltage: 20-35 VDC
- Output voltage: 13.8 VDC
- Maximum current: 60 A
- Peak current: 70 A
- Power consumption: 60 A
- Length: 151 mm
- Height: 98 mm
- Width: 88 mm
- Model: SDC-60
-
