SKU:
TN 00711119
€ 68,83
1-2 weeks delivery time
-
+
The SDC-5 is a small, efficient DC-DC converter delivering a steady 13.8V output at 5A continuous current from a 20-35V input, featuring advanced switch-mode design, easy installation, and built-in protections such as current limiting and short circuit prevention.
- Description
- Ask a Question
-

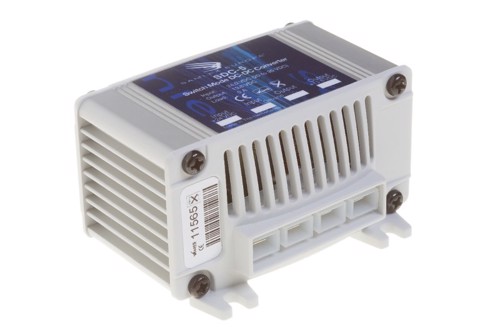

Samlex SDC-5 - DC-DC Converter / 20-35V>13.8V 5A
The SDC-5 offers efficient power conversion in a small form factor, ideal for applications that need consistent voltage regulation with low heat and energy consumption. It is equipped with protective features and is straightforward to install.
- Advanced switch-mode power conversion design
- Highly efficient operation
- Easy to install almost anywhere
- Cycle through current limiting circuit
- Compact and lightweight
- Reverse polarity protection
- Overvoltage protection
- Short circuit protection
- Order number: 00711119
- Supplier code: 62200
- Barcode: 8718013622004
- Input voltage: 20-35 VDC
- Output voltage: 13.8 VDC
- Maximum current: 5 A
- Peak current: 5.5 A
- Power consumption: 5 A
- Length: 49 mm
- Height: 49 mm
- Width: 88 mm
- Model: SDC-5
-
