The Samlex SDC-12 is a compact, high-quality DC-DC converter designed for stable and efficient power conversion from 20-35V input to 13.8V output at 12A continuous current, featuring advanced switch-mode technology and multiple protection circuits including current limiting and reverse polarity safeguards.
- Description
- Ask a Question
-

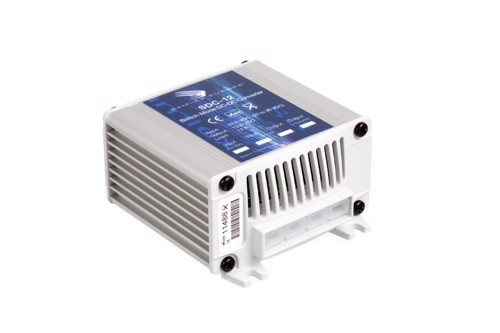

Samlex SDC-12 - DC-DC Converter / 20-35V>13.6V 12A
The Samlex SDC-12 is a high-quality DC-DC converter built in a compact casing, ideal for stable, efficient power conversion with low heat and energy consumption. It is designed for easy mounting and comprehensive protection features.
- Advanced switch-mode power conversion ensuring excellent efficiency
- Compact and lightweight for flexible installation
- Includes current limiting circuit for protection
- Built-in reverse polarity, overvoltage, and short circuit safeguards
- Order number: 00711122
- Supplier code: 62210
- Barcode: 8718013622103
- Input Voltage: 20-35 VDC
- Output Voltage: 13.8 VDC
- Continuous Power: 12 A
- Peak Power: 12.5 A
- Dimensions (L x W x H): 98 mm x 88 mm x 49 mm
- Model: SDC-12
-
