SKU:
TN 00711121
€ 82,37
1-2 weeks delivery time
-
+
The Samlex SDC-10M is a compact and efficient DC-DC converter providing 13.8V and 12V memory output with 8A continuous current. It features advanced switch-mode design, current limiting, and protections against reverse polarity, overvoltage, and short circuits.
- Description
- Ask a Question
-

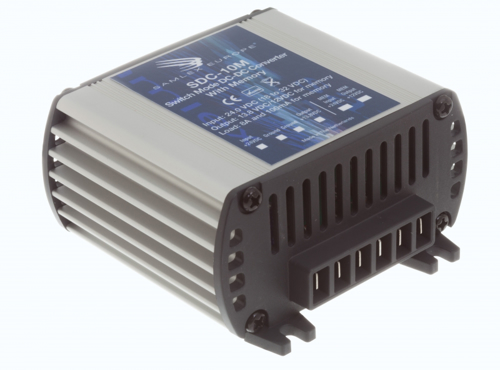

Samlex SDC-10M - DC-DC Converter / 18-32V>13.8V+12V Memory 8A+100mA
The Samlex SDC-10M offers a compact and efficient solution for DC-DC conversion, designed to deliver reliable performance with low heat generation and minimal energy consumption. Its advanced switch-mode power conversion ensures stability and protection in demanding applications.
- Advanced switch-mode power conversion design for high efficiency
- Compact and lightweight, easy to install almost anywhere
- Current limiting circuit for safe operation
- Reverse polarity, overvoltage, and short circuit protection
- Order number: 00711121
- Supplier code: 62206
- Input Voltage: 20-35 VDC
- Output Voltage: 13.8 VDC + 12V at 100mA memory output
- Continuous Power: 8 A
- Peak Power: 10 A
- Dimensions (L x W x H): 98 mm x 100 mm x 49 mm
- Model: SDC-10M
-
