SKU:
TN 00711181
€ 2.214,40
1-2 weeks delivery time
-
+
The Samlex OC24-80 offers an advanced 4-stage IUoUoP charging process with 80 Amps output for 24 Volt lead-acid batteries, including mixed types like lead-acid, AGM, and Lithium. It supports parallel operation of up to six units for synchronized currents up to 540 Amps and features triple outputs for simultaneous charging of three battery banks, with various protections and programmable charging phases.
- Description
- Ask a Question
-

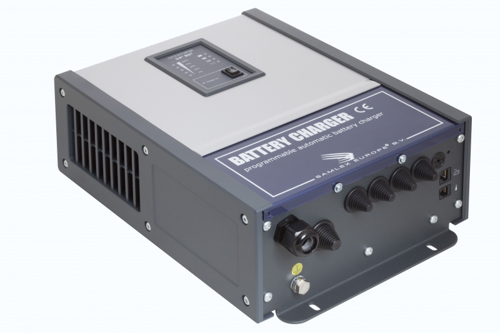

Samlex OC24-80 - Omni Charge Battery Charger OC 24V80A
The Samlex OC24-80 is a highly advanced, fully programmable battery charger designed for demanding professional applications. It provides a 4-stage IUoUoP charging process with 80 Amps output, suitable for a wide range of lead-acid batteries including Wet, AGM, Gel, and LiFePO4 types. Operating with a universal 100-260 VAC input (47-63Hz), up to six units can be connected in parallel to supply synchronized charging currents up to 540 Amps. The triple output system allows simultaneous charging of three separate battery banks, supporting mixed battery types such as lead-acid, AGM, and Lithium on one charger.
- Switch mode technology for high efficiency
- Lightweight and quiet operation
- Three full current outputs
- Universal power factor corrected auto-range AC input
- Parallel capacity up to 6 chargers
- Protection against battery faults, high temperature, overload, short circuit, low input voltage, and reverse polarity
- Multi-stage intelligent charging programs, programmable up to 8 phases
- Remote on/off via universal or optional basic remote control
- Temperature sensor included
- Easy access connection compartment for AC/DC and control wiring installation
- European product
- Order number: 00711181
- Supplier code: 57550
- Input Voltage: 100 - 260 VAC
- Output Voltage: 27 - 31 VDC
- Number of outputs: 3
- Charging current: 80 A
- Dimensions (WxHxD): 271 x 370 x 132 mm
- Battery capacity range: 160 - 800 Ah
- Weight: 6.2 kg
- Model: OC-24-80
-
