SKU:
TN 00711179
€ 1.563,94
1-2 weeks delivery time
-
+
The Samlex OC12-90 is a fully programmable automatic battery charger designed for professional use, delivering 90 Amps with a 4-stage IUoUoP charging process. It supports all 12 Volt lead-acid batteries, operates on a wide AC voltage range, and allows parallel connection of up to six units for synchronized charging up to 540 Amps. Its triple output design enables simultaneous charging of three separate battery banks.
- Description
- Ask a Question
-

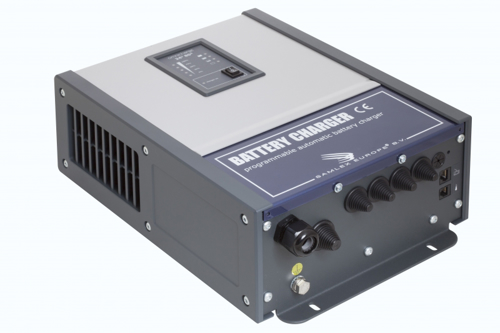

Samlex OC12-90 - Omni Charge Battery Charger OC 12V90A
The Samlex OC12-90 is a cutting-edge, fully programmable automatic battery charger tailored for professional use. It delivers a 4-stage IUoUoP charging process with a powerful 90 Amp output, suitable for all 12 Volt lead-acid batteries including Flooded, AGM, Gel Cell, and LiFePO4 types. Operating from a wide AC voltage range (100-260V, 47-63Hz), this charger supports parallel connection of up to six units, enabling synchronized charging currents up to 540 Amps. Its triple output design allows simultaneous charging of three separate battery banks.
- Innovative product design
- ISO 9001-2015 certified
- Order number: 00711179
- Supplier code: 57520
- Barcode: 8718013575201
- Input Voltage: 100 - 260 VAC
- Output Voltage: 13.5 - 15.5 VDC
- Number of outputs: 3
- Charging current: 90 A
- Dimensions (WxHxD): 271 x 370 x 132 mm
- Battery capacity range: 180 - 900 Ah
- Weight: 6.2 kg
- Model: OC 12-90
-
