SKU:
TN 00711137
€ 326,18
1-2 weeks delivery time
-
+
The Samlex IDC-360B-24 is an efficient isolated DC-DC converter offering galvanic isolation and robust protections such as short circuit, overheating, and reverse polarity protection. It supports input voltages of 20-35 VDC with a 24.5 VDC output at 15 A, and complies with European standards for EMI, EMC, and automotive directives.
- Description
- Ask a Question
-

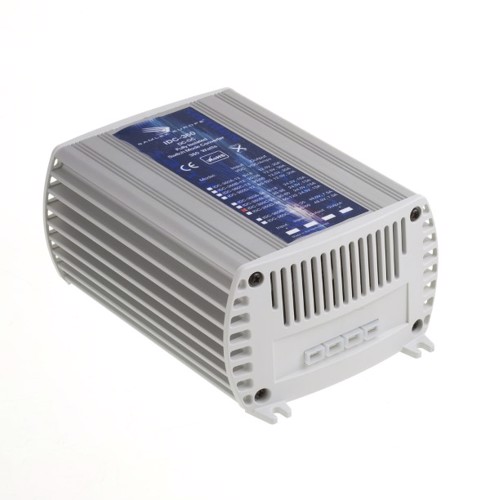

Samlex IDC-360B-24 - DC-DC Isolated Converter / 20-35V>24.5V 15A
The Samlex IDC-360B-24 is a highly efficient isolated DC-DC converter designed to provide galvanic isolation between input and output, ideal for applications demanding electrical isolation. It features robust protections and compact construction, ensuring reliable and safe operation in demanding environments.
- Fully insulated design for secure operation
- Protection against short circuits, overheating, overvoltage, and reverse polarity connection
- Backflow limitation to prevent unwanted current flow
- 6.3 mm terminal connections compatible with sliding plugs
- Compliant with European standards EN50081-1 (EMI), EN50082-1 (EMC), and Automotive Directive 95/54/CE
- Step-Up and Step-Down models for stabilized output voltage adjustment
- Input voltage range: 20-35 VDC
- Output voltage: 24.5 VDC
- Maximum current: 15 A
- Peak power: 360 Watt
- Physical dimensions: 190.5 mm length, 132.8 mm width, 82 mm height
- Model: IDC-360B-24
- Order number: 00711137
- Supplier code: 62545
-
