SKU:
TN 00711135
€ 326,18
1-2 weeks delivery time
-
+
The Samlex IDC-360B-12 is a DC-DC isolated converter designed for input voltages between 20-35 VDC and delivers a stable 12.5 VDC output at up to 30 A. It features full galvanic isolation, short circuit protection, current limiting, and meets European EMI and EMC standards, making it safe and reliable for high voltage applications.
- Description
- Ask a Question
-

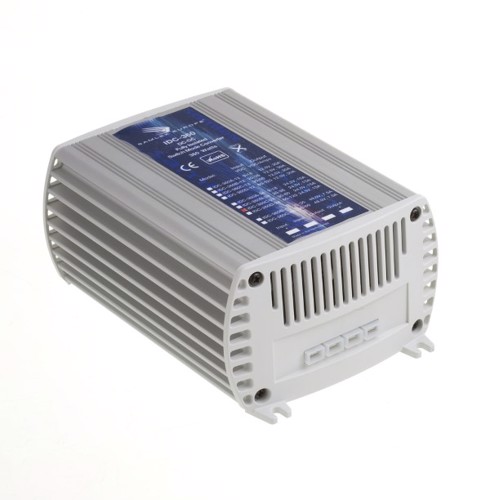

Samlex IDC-360B-12 - DC-DC Isolated Converter / 20-35V to 12.5V 30A
This converter in the IDC series is tailored for applications requiring higher input voltages with stable 12.5 V output, offering galvanic isolation, protection features, and compliance with relevant European standards.
- Fully insulated for safety assurance
- Short circuit protection integrated
- Current limiting circuit to avoid overload
- Input voltage range: 20-35 VDC
- Output voltage: 12.5 VDC
- Maximum current: 30 A
- Peak power: 360 W
- Power consumption: 30 A
- Dimensions: 190.5 mm length, 82 mm height, 132.8 mm width
- 6.3 mm terminal connections designed for sliding plugs
- Complies with EN50081-1 (EMI), EN50082-1 (EMC), and European Automotive Directive 95/54/CE
- Model: IDC-360B-12
- Order number: 00711135
- Supplier code: 62525
-
