SKU:
TN 00711136
€ 326,18
1-2 weeks delivery time
-
+
The IDC-360A-24 offers isolated DC-DC conversion with a stable 24.5V output at 15A continuous current from a 9-18V input, combining full galvanic isolation, current limiting, and multiple protections within a compact housing, compliant with European EMI, EMC, and automotive directives.
- Description
- Ask a Question
-

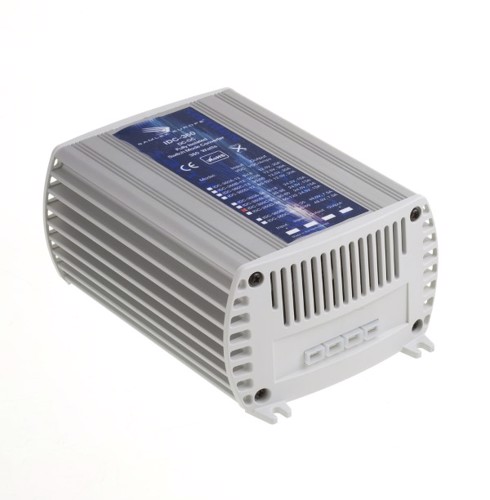

Samlex IDC-360A-24 - DC-DC Isolated Converter / 9-18V to 24.5V 15A
This model from the IDC series delivers stable 24.5 V output with isolation between input and output, ideal for applications requiring step-up voltage conversion with protection and compliance with automotive and European standards.
- Fully insulated for enhanced safety
- Protection against short circuits
- Current limiting circuit included
- Input voltage range: 9-18 VDC
- Output voltage: 24.5 VDC
- Maximum current: 15 A
- Peak power: 360 W
- Power consumption: 15 A
- Dimensions: 190.5 mm length, 82 mm height, 132.8 mm width
- 6.3 mm terminal connections for sliding plugs
- Compliance with EN50081-1 (EMI), EN50082-1 (EMC), and European Automotive Directive 95/54/CE
- Model: IDC-360A-24
- Order number: 00711136
- Supplier code: 62540
-
