The IDC-200B-24 provides isolated DC-DC conversion with a stabilized 24.5V output at 8A from a 20-35V input, featuring full insulation, extensive protective features, and compatibility with sliding plug terminals, compliant with European and automotive standards in a compact form factor.
- Description
- Ask a Question
-

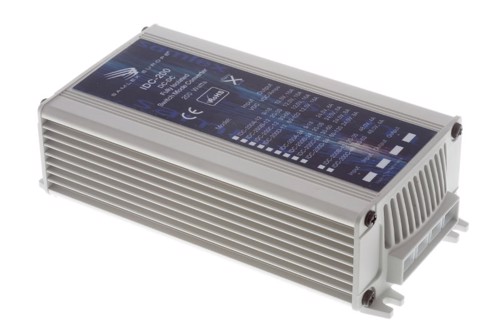

Samlex IDC-200B-24 - DC-DC Isolated Converter / 20-35V to 24.5V 8A
The IDC-200B-24 converter is part of the IDC line offering efficient isolated DC-DC conversion with galvanic isolation between input and output. It features a compact form factor, backflow limitation, and comprehensive protection including short circuit, overheating, overvoltage, and reverse polarity safeguards. The 6.3 mm terminal connections are suitable for sliding plugs, and the product adheres to European EMI, EMC standards, and automotive directives.
- Fully insulated for enhanced safety
- Protection against short circuits
- Incorporates current limiting circuitry
- Input voltage range: 20-35 VDC
- Output voltage: 24.5 VDC
- Maximum current: 8 A
- Peak power output: 200 Watts
- Power consumption rated at 8 A
- Dimensions: 176 mm length, 50 mm height, 88 mm width
- Model number: IDC-200B-24
- Order number: 00711133
- Supplier code: 62465
-
