SKU:
TN 00711129
€ 157,10
1-2 weeks delivery time
-
+
The IDC-100B-24 provides isolated DC-DC step-up conversion to 24.5V at 4A continuous current from a 20-35V input, featuring comprehensive protective features, fully insulated construction, and compatibility with sliding plug terminals, compliant with European EMI, EMC, and automotive standards.
- Description
- Ask a Question
-

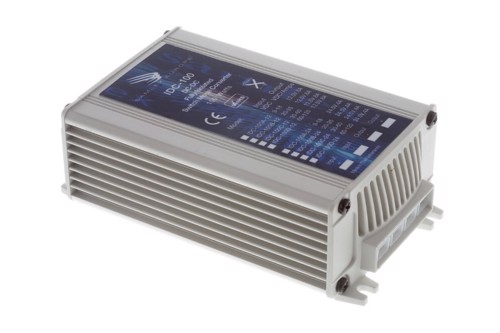

Samlex IDC-100B-24 - DC-DC Isolated Converter / 20-35V > 24.5V 4A
The IDC-100B-24 converter offers an isolated DC-DC step-up conversion with a stabilized output voltage of 24.5V and a maximum current of 4A, ideal for applications needing galvanic isolation and robust protection.
- Input Voltage Range: 20-35 VDC
- Output Voltage: 24.5 VDC
- Maximum Current: 4 A
- Peak Power: 100 Watts
- Fully insulated unit with built-in protections against short circuits, current overload, overvoltage, overheating, and reverse polarity
- Compact housing with 6.3 mm terminal connections compatible with sliding plugs
- Meets European standards EN50081-1 (EMI), EN50082-1 (EMC), and Automotive Directive 95/54/CE
- Dimensions: 151 mm (length) × 88 mm (width) × 50 mm (height)
- Order number: 00711129, Supplier code: 62425, Barcode: 8718013624251
- Model: IDC-100B-24
-
