SKU:
TN 00711127
€ 157,10
1-2 weeks delivery time
-
+
The IDC-100B-12 is an isolated DC-DC converter delivering 12.5V at 8A continuous current from a 20-35V input, with full insulation and multiple protections including current limiting, overvoltage, and reverse polarity, meeting European standards in a compact design with terminal connections for sliding plugs.
- Description
- Ask a Question
-

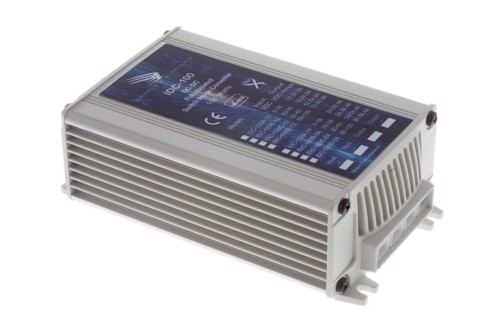

Samlex IDC-100B-12 - DC-DC Isolated Converter / 20-35V > 12.5V 8A
This model from the IDC series delivers a reliable isolated DC-DC conversion with a stabilized output voltage of 12.5V at up to 8A, designed for applications that require galvanic isolation between input and output.
- Input Voltage Range: 20-35 VDC
- Output Voltage: 12.5 VDC
- Maximum Current: 8 A
- Peak Power: 100 Watts
- Fully insulated construction
- Protection features include short circuit prevention, current limiting, overvoltage, overheating, and reverse polarity protection
- Compact housing with 6.3 mm terminal connections for sliding plugs
- Compliance with European standards EN50081-1 (EMI), EN50082-1 (EMC), and Automotive Directive 95/54/CE
- Dimensions: 151 mm (length) × 88 mm (width) × 50 mm (height)
- Order number: 00711127, Supplier code: 62405, Barcode: 8718013624053
- Model: IDC-100B-12
-
