The IDC-100A-24 offers an isolated DC-DC conversion with a stable 24.5V output at 4A from a 9-18V input, designed for galvanic isolation with advanced protections such as short circuit prevention and overvoltage safeguards, housed in a compact, compliant casing.
- Description
- Ask a Question
-

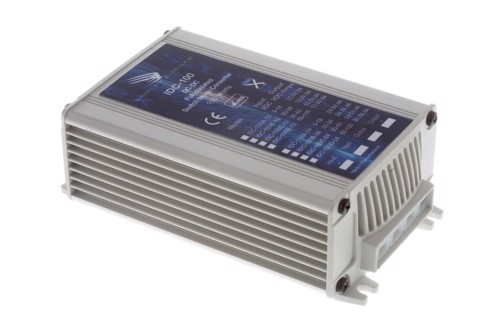

Samlex IDC-100A-24 - DC-DC Isolated Converter / 9-18V to 24.5V 4A
The IDC-100A-24 model belongs to the IDC series of isolated DC-DC converters, offering reliable galvanic isolation with advanced protections, suitable for applications requiring stable and isolated power supply.
- Fully insulated for safety and performance
- Short circuit protection
- Includes current limiting circuit
- Compact housing with 6.3 mm terminal connections for sliding plugs
- Backflow limitation
- Protection against overheating, overvoltage, and reverse polarity
- Complies with European standards EN50081-1 (EMI), EN50082-1 (EMC), and Automotive Directive 95/54/CE
- Order number: 00711128
- Supplier code: 62420
- Barcode: 8718013624206
- Input voltage: 9-18 VDC
- Output voltage: 24.5 VDC
- Maximum current: 4 A
- Peak power: 100 W
- Power consumption: 4 A
- Dimensions (L x W x H): 151 mm x 88 mm x 50 mm
- Model: IDC-100A-24
-
