The Samlex Expert Modular Battery Monitor is a precise monitoring system for up to three battery banks, handling up to 600A and voltages up to 70 VDC. It features an active shunt with relay control, simple installation, and compatibility with lead or lithium batteries from 12V to 48V for accurate real-time data and external equipment control.
- Description
- Ask a Question
-
Samlex Expert Modular Battery Monitor
The Samlex Expert Modular Battery Monitor is a state-of-the-art monitoring system providing precise battery status and control features. It utilizes an intelligent active shunt and a Control and Display Unit (CDU) connected via digital cable to deliver accurate real-time data and additional control capabilities.
- Monitors up to three separate battery banks
- Handles measurements up to 600A (500A continuous) and voltages up to 70 VDC
- Compatible with lead or lithium batteries from 12V to 48V

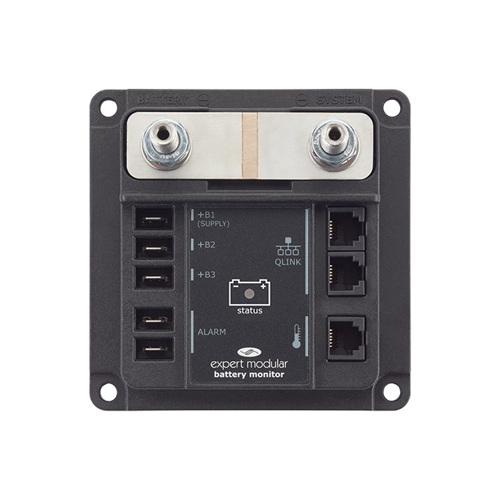

- Active shunt module performs all calculations for high accuracy
- Relay integrated in shunt base to control external equipment based on battery conditions

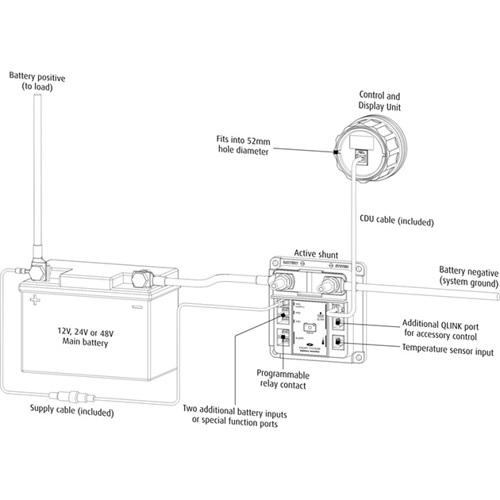

- Simple installation with single power wire and plug-and-play 10 meter QuickLink cable
- Shunt connects to the battery's negative pole cable
- Includes power wiring with fuse holder
- Installation diameter: 52 mm
- Front dimensions: 64 mm x 64 mm
- Product depth: 36 mm
- Order number: 00711178
- Supplier code: 83766
- Barcode: 8718013837668
-
