The Samlex BSB-250 Battery Split Relay is designed for dual battery setups, connecting or disconnecting batteries automatically at defined voltages, providing reliable operation with minimal voltage loss and easy installation.
- Description
- Ask a Question
-

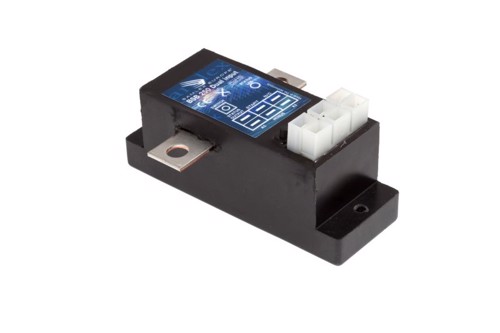

Samlex BSB-250 - Battery Split Relay Dual
The BSB 250 DUAL is tailored for dual battery setups in boats, motorhomes, and caravans. It features a microprocessor-controlled relay that connects batteries in parallel when charging voltage is detected and disconnects when voltage drops, providing a reliable alternative to traditional battery isolators without voltage loss.
- Automatically connects batteries at 13.2V / 26.4V for at least 5 seconds during charging.
- Disconnects batteries if voltage falls below 12.8V / 25.6V for at least 5 seconds, indicating discharge.
- No significant voltage drop, so no need to adjust alternator or charger output voltage.
- Can be installed without changing existing wiring circuits.
- General
- Order number: 00711105
- Supplier code: 83620
- Battery voltage: Auto-detect 12/24 Volt
- Continuous power: 250 A
- Peak power: 1500 A
- Power consumption OFF: 2.0mA
- Power consumption ON: 3.0mA
- Battery connections: M8 and Faston 6.3mm
- Minimum battery cable thickness: 50 mm²
-
