SKU:
TN 00711107
€ 360,01
1-2 weeks delivery time
-
+
The Samlex BS-500 Battery Split Relay uses a microprocessor-controlled heavy-duty relay for dual battery systems, automatically connecting or disconnecting batteries based on voltage, with high current capacity, no voltage drop, and simple installation.
- Description
- Ask a Question
-

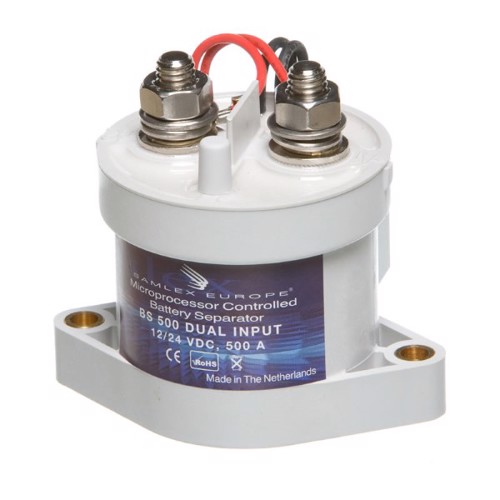

Samlex BS-500 - Battery Split Relay Dual
The BS-500 DUAL is designed to manage dual battery systems commonly found in boats, motorhomes, and caravans. It uses a microprocessor-controlled heavy-duty relay to automatically link batteries in parallel when one battery reaches a charging voltage and disconnects when voltage falls, ensuring optimal battery performance without voltage loss.
- Automatically connects batteries at 13.2V / 26.4V for at least 5 seconds, indicating charging.
- Disconnects batteries if voltage drops below 12.8V / 25.6V for at least 5 seconds, indicating discharge.
- Virtually no voltage drop, eliminating the need to increase alternator or charger output voltage.
- Easy installation without modifying existing wiring, suitable for alternators that do not accept battery isolators.
- Bi-directional function: if a charger is connected to the second battery and its voltage rises, the starter battery is also recharged.
- Switch opens after voltage drops below 12.8V (25.6V) for 60 seconds once charger is removed, preserving starter battery health.
- General
- Order number: 00711107
- Supplier code: 83635
- Battery voltage: Auto-detect 12/24V (9 - 36 Volt)
- Continuous power: 500 A
- Peak power: 2000 amps for 250 milliseconds
- Power consumption OFF: 12V/1.8mA, 24V/2.0mA
- Power consumption ON: 12V/160mA, 24V/100mA
- Battery connections: M8 and Faston 6.3mm
- Minimum battery cable thickness: 50 mm²
-
