SKU:
TN 00711114
€ 326,18
1-2 weeks delivery time
-
+
The Samlex BGB-250 is an intelligent Battery Guard for 12V or 24V systems, capable of handling continuous currents up to 250A and peak surges of 15,000A. It includes AUTO or MANUAL reset options, adjustable undervoltage settings, and very low operating current for reliable battery protection.
- Description
- Ask a Question
-

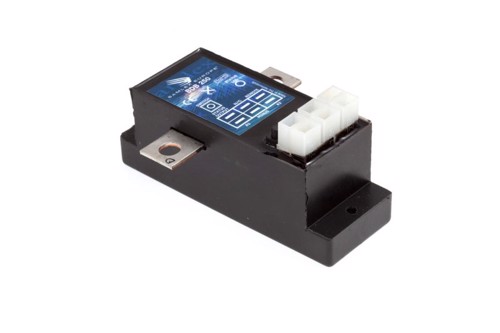

Samlex BGB-250 - Battery Guard 12-24V/250A
The Samlex BGB-250 is a powerful intelligent Battery Guard designed to prevent battery damage due to excessive discharge and to protect electronics from voltage spikes. It automatically detects 12V or 24V battery systems and supports a continuous current load of 250A with a peak surge capacity of 15,000A. This model offers an AUTO or MANUAL reset option for dead battery scenarios.
- Automatic 12V/24V detection
- High switching current capability
- Bistable relay design for reliable operation
- Very low operating current of 3mA
- Adjustable undervoltage cut-off and reset voltages
- Order number: 00711114
- Supplier code: 83665
- Voltage OFF range: 9.5V to 27.6V
- Continuous current: 250A
- Peak current: 15,000A
- Recommended cable size: 50 mm²
- Dimensions: 120 mm (length) × 82 mm (width) × 57 mm (height)
-
