SKU:
TN 00711109
€ 76,75
1-2 weeks delivery time
-
+
The Samlex BG-18 Battery Guard offers programmable protection to avoid battery damage from excessive discharge and overvoltage, detecting 12/24V systems automatically, with 10 voltage settings and an 18A continuous current rating.
- Description
- Ask a Question
-

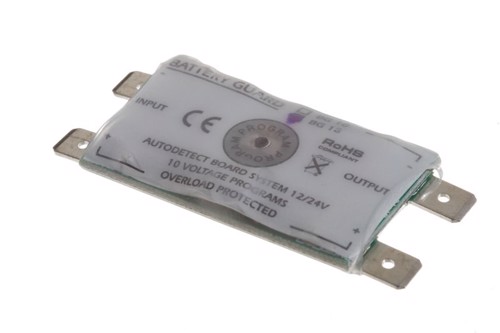

Samlex BG-18 - Battery Guard 12-24V/18A
The Samlex BG-18 is a programmable battery guard from the BG series designed to prevent battery damage through excessive discharge and protect your electronics from overvoltage. It automatically detects your system voltage (12V or 24V) and offers 10 selectable on/off voltage thresholds to tailor protection to your setup.
- Configurable to connect or disconnect based on voltage
- Prolongs battery life by avoiding deep discharge
- Prevents damage to connected devices
- Shields against overvoltage caused by malfunctioning alternators or chargers
- Order number: 00711109
- Supplier code: 83649
- Barcode: 8718013836494
- Voltage OFF range: 9.5V to 27.6V
- Continuous current rating: 18A
- Peak current rating: 75A
- Recommended cable size: 1.5 mm²
- Model: BG-18
- Dimensions: 60 mm (L) × 20 mm (W) × 5 mm (H)
-
