The Samlex BG-100 Battery Guard provides programmable protection against deep discharge and overvoltage for 12/24V systems, with 10 selectable voltage programs, a 100A continuous rating, and safeguards connected devices.
- Description
- Ask a Question
-

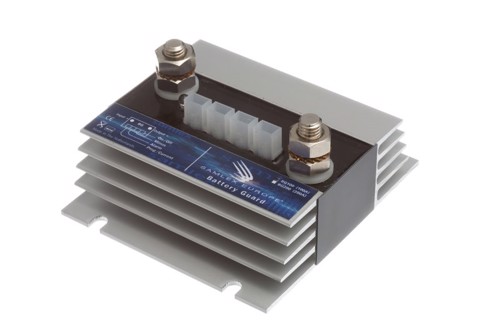

Samlex BG-100 - Battery Guard 12-24V/100A
The Samlex BG-100 is a versatile and programmable battery guard designed to protect your battery from deep discharge and shield your electronic devices from overvoltage. It automatically detects whether your system operates on 12V or 24V and allows you to select from 10 different voltage threshold programs for optimal battery care.
- Can be configured to connect or disconnect at various voltage levels
- Extends battery lifespan by preventing excessive discharge
- Protects connected components from damage
- Guards against voltage spikes caused by faulty alternators or chargers
- Order number: 00711112
- Supplier code: 83657
- Barcode: 8718013836579
- Voltage OFF range: 9.5V to 27.6V
- Continuous current rating: 100A
- Peak current rating: 480A
- Recommended cable size: 32 mm²
- Model: BG-100
- Dimensions: 110 mm (L) × 120 mm (W) × 60 mm (H)
-
