The Samlex BDB-250 Lithium Battery Protector safeguards lithium batteries from excessive discharge and overvoltage damage. It supports 12-24 V systems with 250A continuous and 15,000A peak current capacity, features microprocessor control, bipolar relay switching, and is designed for LiFePO4 batteries with programmable reset options.
- Description
- Ask a Question
-

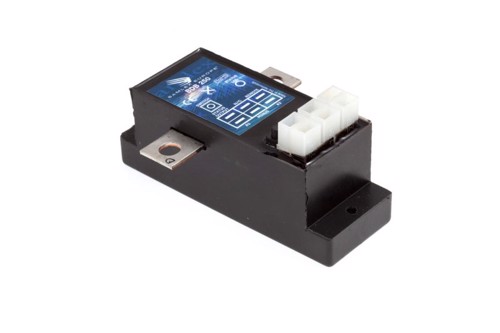

Samlex BDB-250 - Lithium Battery Protector 12-24V/250A
The Samlex BDB-250 is a versatile and programmable Battery Guard designed to protect lithium batteries from excessive discharge and prevent damage to connected electronics due to overvoltage. It features automatic detection of lithium battery voltage (12 or 24 volts) and offers robust protection with a continuous load capacity of 250 amps and a temporary surge of 300 amps. Users can select between automatic or manual reset modes after battery depletion.
- Bipolar relay switching for reliable operation
- Microprocessor controlled system for precision management
- Status output for monitoring device conditions
- Specially designed for lithium iron phosphate (LiFePO4) batteries
- Order number: 00711115
- Supplier code: 83670
- Barcode: 8718013836708
- Voltage OFF range: 9.5 - 27.6 V
- Continuous current capacity: 250 A
- Peak current: 15,000 A
- Recommended cable size: 50 mm²
- Model: BDB-250
- Dimensions: 120 mm (L) x 82 mm (W) x 57 mm (H)
-
