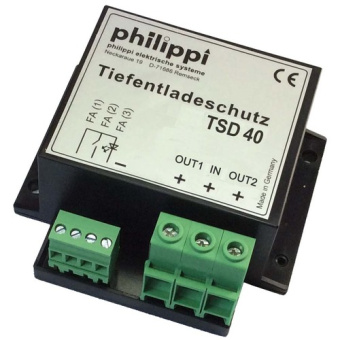

Philippi 80001240 - TSD 12 /40

Article BB-80001240

€ 108,70

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Philippi 80001240 TSD 12/40, belonging to the Philippi TSD 40 series, introduces a two-stage deep discharge protection system to optimize battery longevity. This remote-controllable battery cut-off switch ensures comprehensive battery protection by selectively disconnecting connected consumers during deep discharge, allowing crucial or safety-relevant devices to remain operational. An acoustic alarm signals imminent shutdown, automatically reactivating at 12.5/25V. The unit's versatile "13 V" setting enables energy management, activating additional appliances like a cool box or heating carpet when the alternator is running or solar panels generate sufficient energy. Adjustable between 12/24 V DC via a DIP switch, each channel boasts a maximum switching capacity of 40 A, with precise switch-off and restart voltages. Remote control capabilities are facilitated through the FB-TSA control panel, and the unit's compact dimensions (L 130 x W 80 x H 42 mm) and screw terminals for connections (max. 10 mm2) enhance its practicality for various applications.

Description
Ask a Question

Philippi 80001240 - TSD 12/40

Type: Philippi TSD 40

The Philippi TSD 12/40, categorized as Type Philippi TSD 40, offers two-stage deep discharge protection for optimal battery protection. This remote-controllable battery cut-off switch safeguards batteries from damage caused by deep discharge, allowing continued operation of important or safety-relevant consumers. An acoustic alarm warns of imminent shutdown, and automatic reactivation occurs at 12.5/25V.

With a versatile "13 V" setting, energy management becomes achievable. For instance, additional appliances like a cool box, heating carpet, or hot water boiler can be activated as soon as the alternator is running or a solar panel generates sufficient energy. The operating voltage is adjustable between 12/24 V DC via a DIP switch, and each channel has a maximum switching capacity of 40 A.

Switch-off and restart voltages are precisely defined, with the option to remotely control the two outputs using the FB-TSA remote control panel. The unit's dimensions are L 130 x W 80 x H 42 mm, and it features screw terminals for easy connections with a maximum of 10 mm2 wiring.
