Philippi 702193580 - UTV 80

Article BB-702193580

€ 120,91

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

Meet the Philippi 702193580 - UTV 80, an ultrasonic tank transmitter designed to elevate tank level measurements for both analog and digital instruments, specifically crafted for gray water and sewage tanks. Redefining the measurement process, this technology operates without any moving parts within the tank, ensuring resistance to dirt accumulation and potential damage—a particularly advantageous feature for holding tanks. It's important to note that, due to limitations during inclined positions or sailing with waves, the UTV 80 is not recommended for fuel tanks. However, signal improvement while driving can be achieved by installing a UFT sound guide tube. With seamless compatibility for existing conventional tank sensors following the SAE standard, a versatile supply of 10 - 30 V, and minimal current consumption of 50 mA, the UTV 80 operates reliably in a temperature range from -40°C to 85°C, guaranteeing consistent performance across diverse conditions.

Description
Ask a Question

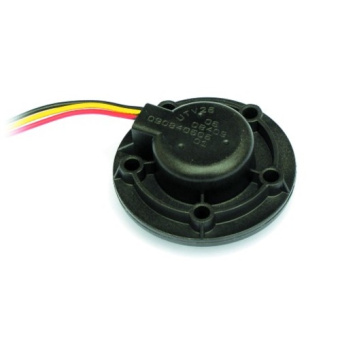

Philippi 702193580 - UTV 80

Type: Philippi UTV

Introducing the Philippi UTV 80, an ultrasonic tank transmitter meticulously designed for both analog and digital measuring instruments, tailored for gray water and sewage tanks. Revolutionizing tank level measurement, this technology eliminates the need for moving parts within the tank, preventing potential dirt accumulation and damage. With a focus on holding tanks, please note that measurements are not recommended during inclined positions or sailing with waves, making it unsuitable for fuel tanks. However, signal improvement while driving can be achieved by installing a UFT sound guide tube. The UTV 80 effortlessly replaces existing conventional tank sensors adhering to the SAE standard, featuring a versatile supply of 10 - 30 V with a minimal current consumption of 50 mA. Operating reliably in a temperature range from -40°C to 85°C, the UTV 80 ensures consistent performance across diverse conditions.
