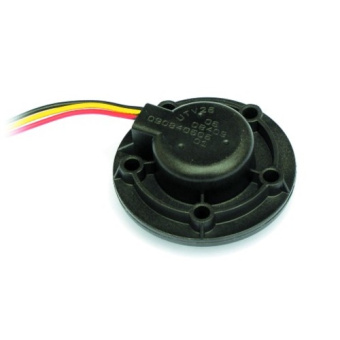

Philippi 702193525 - UTV 25

Article BB-702193525

€ 120,91

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

Meet the Philippi 702193525 - UTV 25, an ultrasonic tank transmitter designed for analog and digital measuring instruments, catering to gray water and sewage tanks. This innovative technology enables non-contact level measurement without the need for moving parts inside the tank, ensuring resistance to dirt and damage, making it especially suitable for holding tanks. It's important to note that due to restrictions during inclined positions or rough waves, the UTV 25 is not recommended for fuel tanks; however, signal improvement is possible while driving through the installation of a UFT sound guide tube. With easy compatibility for existing conventional tank sensors following the SAE standard, featuring a 10 - 30 V supply and low current consumption of 50 mA, the UTV 25 operates seamlessly in a temperature range from -40°C to 85°C, guaranteeing reliable performance across diverse conditions.

Description
Ask a Question

Philippi 702193525 - UTV 25

Type: Philippi UTV

Introducing the Philippi UTV 25, an ultrasonic tank transmitter designed for both analog and digital measuring instruments. Ideal for gray water and sewage tanks, this non-contact level measurement technology eliminates the need for moving parts within the tank, ensuring resistance to dirt and damage. Particularly suitable for holding tanks, the UTV 25 has restrictions for fuel tanks during inclined positions or rough waves, with signal improvement possible through a UFT sound guide tube installation while driving. Easy to exchange with existing conventional tank sensors following the SAE standard (5 holes in a 53 mm bolt circle), it operates on a supply of 10 - 30 V with a low current consumption of 50 mA. The UTV 25 is built to endure a temperature range from -40°C to 85°C, ensuring reliable performance in diverse conditions.
