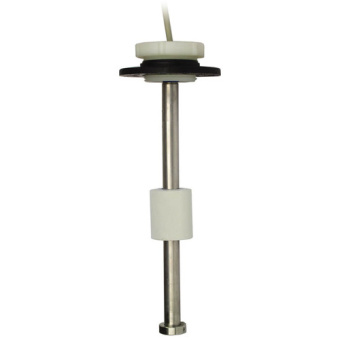

Philippi 660117094 - TGW350 Tank Sensor For Water 35cm
To effectively monitor fluid levels in various tanks aboard, the TGW350 Tank Sensor is the top choice from the high-resolution sensor series TGT/TGW. Designed for vertical installation in both water and fuel tanks, these sensors boast a user-friendly flange mounting system, allowing for easy removal and inspection at any time.
Featuring reed contacts spaced at 16mm intervals, these sensors offer unparalleled resolution across the entire spectrum, far surpassing conventional systems with limited contact points. Unlike traditional lever-based sensors, the compact and dependable design of the TGW350 Tank Sensor saves space while ensuring reliable performance.
Galvanically insulated from the housing, the electronics within the sensor prevent galvanic corrosion, enhancing longevity and reliability. Each sensor comes with a flange and gasket included for seamless installation.
- Resolution: approximately 16mm
- Resistance Range: 5-180 Ω
- Connection cable: 2x 0.34 qmm, length 10cm
- Installation: vertical, ± 20°
- Temperature Range: -10…+70°C
- Pressure: maximum 1 bar
- Protection Rating: IP65
-
