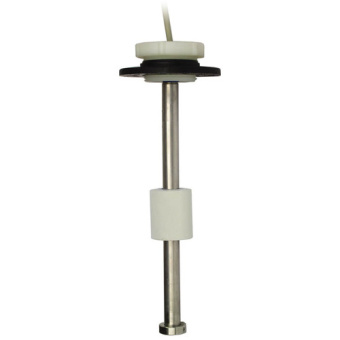

Philippi 660117093 - TGW300 Tank Sensor For Water 30cm
Designed to monitor fluid levels within tanks with precision, the Philippi 660117093 - TGW300 Tank Sensor is an optimal choice. Specifically crafted for vertical installation in both water and fuel tanks, its flange mounting facilitates easy removal for inspection purposes.
Featuring reed contacts spaced at intervals of 16 mm, this sensor series offers unparalleled resolution across the entire spectrum, surpassing conventional systems with limited contact points. Its compact and reliable construction saves valuable space, distinguishing it from lever-based sensors.
The electronic components are galvanically insulated from the housing, preventing galvanic corrosion—a crucial feature for longevity and performance.
Each unit comes complete with a flange and gasket, simplifying installation and ensuring a secure fit.
Specifications:
- Resolution: Approximately 16 mm
- Resistance Range: 5-180 Ω
- Connection Cable: 2x 0.34 qmm, length 10 cm
- Installation: Vertical, ± 20°
- Temperature Range: -10…+70°C
- Maximum Pressure: 1 bar
- Protection Rating: IP65
-
