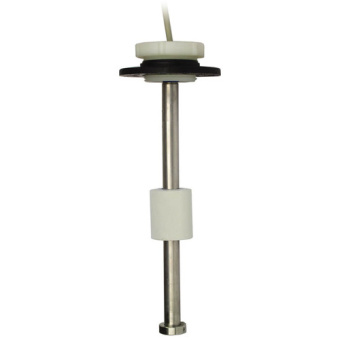

Philippi 660117092 - TGW250 Tank Sensor For Water 25cm
To efficiently monitor fluid levels in all onboard tanks, the TGW250 Tank Sensor is an optimal choice from the high-resolution sensor series TGT/TGW. Specifically designed for vertical installation in both water and fuel tanks, this sensor boasts easy maintenance with its flange mounting, allowing for convenient unscrewing and inspection at any time.
Featuring reed contacts spaced at intervals of 16 mm, this sensor provides exceptional resolution across the entire field, a significant improvement over simpler systems with fewer contacts. Its compact and reliable design saves space compared to traditional lever-based sensors.
Electronically insulated from the housing, this sensor prevents galvanic corrosion, ensuring long-term reliability. Included in the package are the flange and gasket for immediate installation.
- Resolution: Approximately 16 mm
- Resistance Range: 5-180 Ω
- Connection Cable: 2x 0.34 qmm, length 10 cm
- Installation: Vertical, ± 20°
- Temperature: -10…+70°C
- Pressure: Maximum 1 bar
- Protection: IP65
-
