The Philippi 660109010 Adapter Ring GWA simplifies the connection of immersion tube senders to SAE standard boreholes, doubling as a spacer when needed. It comes with all necessary installation materials, including a seal and five stainless steel hexagon socket screws (M5 x 30) with sealing rings. Dimensions include a height of 15mm (plus 2mm for the seal), a diameter of 70mm, and an internal thread of 1 1/4 inch.
- Description
- Ask a Question
-

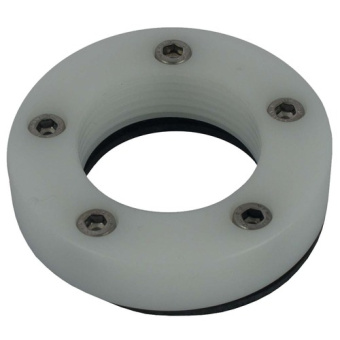

Philippi 660109010 - Adapter Ring GWA
Designed to facilitate the connection of immersion tube senders from the TGW / TGT series to pre-existing boreholes conforming to the SAE standard, the GWA adapter flange serves a dual purpose as both an attachment point and a spacer. This kit includes a seal and five stainless steel hexagon socket screws (M5 x 30) with sealing rings for secure installation.
Specifications:
- Height: 15 mm (plus 2mm seal)
- Diameter: 70 mm
- Internal Thread: 1 1/4 inch
-
