Philippi 621790900 - PC 65 Set Of High-current Connectors

Article BB-621790900

€ 50,92

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Philippi 621790900 - PC 65 Set Of High-current Connectors is a reliable and efficient solution for separating high-current lines up to a maximum of 65 A. It is perfect for use with outboard motors, wind generators, solar modules, hydrogenerators, and electric drives. With its spring-loaded connection, it allows for quick and easy installation without the need for specialized tools. The connector is waterproof when plugged in and features a lock mechanism to prevent accidental disconnection. The set includes a coupling plug and coupling socket, color-coded for easy identification. Technical specifications include a connection cross-section of 6-16 mm2, a maximum voltage of 1500 V DC, and a maximum current of 65 A DC.

Description
Ask a Question

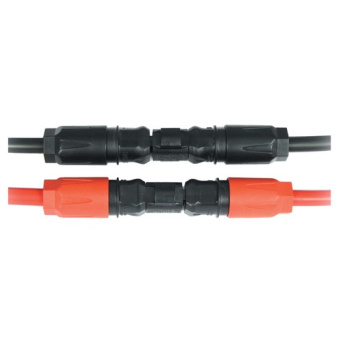

Philippi 621790900 - PC 65 Set Of High-current Connectors

The Philippi 621790900 - PC 65 Set Of High-current Connectors is designed to separate high-current lines with a maximum of 65 A. It is ideal for use with outboard motors, wind generators, solar modules, hydrogenerators, and electric drives. With its spring-loaded connection, it allows for quick and easy connection without the need for special tools. Simply insert the stripped cable, close the spring, and tighten the screw connection to complete the setup.

When plugged in, this connector offers a waterproof rating of IP 68, ensuring its durability and reliability. Additionally, it features a lock mechanism that prevents unintentional disconnection, providing a secure and stable connection.

The set includes a coupling plug and a coupling socket, both color-coded for easy identification of the plus and minus terminals. This simplifies the installation process and ensures correct connections.

Technical Data:
- Connection cross-section: 6-16 mm2
- Voltage: max. 1500 V DC
- Current: max. 65 A DC
- Dimensions when plugged in: approximately L 120 x W 35 mm
