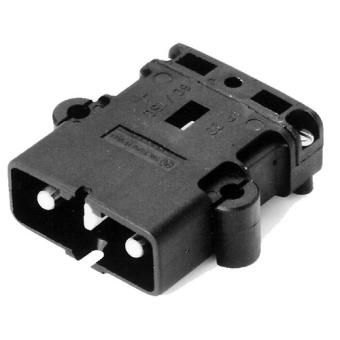

Philippi 612098000 - LB 80S Coupling Plug Incl. Handle (Plug Male)

Article BB-612098000

€ 43,81

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

Philippi 612098000 - LB 80S Coupling Plug Incl. Handle (Plug Male) is a specialized 2-pin connector designed for applications requiring higher currents up to 80 A. Its impact-resistant and weather-resistant housing ensures durability, while the crimped or soldered contacts provide secure connections. The snap-in assembly allows for easy installation, and the handle can be mounted on either the plug or socket part for convenience. With a maximum connection cross-section of 25 mm² and a protection class of IP23, this connector offers reliable performance in various environments.

Description
Ask a Question

Philippi 612098000 - LB 80S Coupling Plug Incl. Handle (Plug Male)

For specialized applications requiring higher currents of up to 80 A, this 2-pin connector offers a robust and weather-resistant housing. The contacts can be easily crimped or soldered for secure connections. The snap-in assembly allows for hassle-free installation, and an additional housing part can be screwed on if needed. The handle can be conveniently mounted on either the plug or socket part for added flexibility. Higher currents can be accommodated upon request.

Technical Data:
- Rated Current: 80 A
- Rated Voltage: up to 96 V
- Temperature Range: -25 °C to +90 °C
- Maximum Connection Cross-Section: 25 mm²
- Contact Material: E-Cu, silver plated
- Type of Connection: Crimping (or Soldering)
- Protection Class: IP23
