Philippi 600035200 - Main Battery Switch BH 200 F

Article BB-600035200

€ 69,33

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

Introducing the Philippi 600035200 - Main Battery Switch BH 200 F, a reliable and durable battery main switch designed for high current loads and long-term use. Crafted with expertise from relay technology, this switch boasts a watertight design, ensuring its functionality even in challenging conditions. With its convenient switch lever, it can be easily pulled off to the off position. Technical specifications include built-in or flange mounting with a Ø22 mm mounting hole, a continuous current of 200 A, peak currents of 500 A / 3 min and 1000 A / 30 s, a maximum voltage of 32 V DC, M10 connection, IP 67 protection class, and dimensions of Ø 55 x 105 mm.

Description
Ask a Question

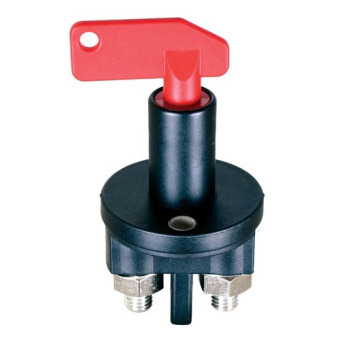

Philippi 600035200 - Main Battery Switch BH 200 F

Battery main switch for high current loads and permanent use. High-quality professional design based on experience from relay technology in a watertight design. Switch lever can be pulled off in the off position.

Technical data:
Built-in or flange mounting, mounting hole Ø22 mm
Continuous current: 200 A
Peak current: 500 A / 3 min, 1000 A / 30 s
Voltage: max. 32 V DC
Connection: M10
Protection class: IP 67
Dimensions: Ø 55 x 105 mm
