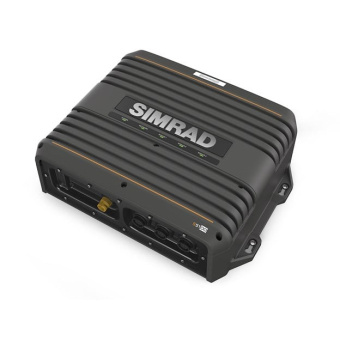

Navico Sounder S5100 With CHIRP

SKU: EX 000-13260-001

€ 2.282,37

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Navico Sounder S5100, equipped with advanced sonar technology, enhances fishing experiences by offering multiple transducer options for superior visibility and precise target detection. With dimensions of 340 x 100 x 250 mm, it has a weight of 4.7 kg and operates within a voltage range of 12 to 24 V. It features a waterproof rating of IPX5 and is designed to withstand humidity up to 95% and temperatures from -15°C to +55°C. Connectivity options include a single 100 Mbps Ethernet port, and it complies with EMC Directive 2014/30/EU.

Description
Ask a Question

Navico Sounder S5100 With CHIRP 000-13260-001

The Navico Sounder S5100 is engineered to elevate your fishing experience with advanced sonar technology. It leverages multiple transducer options for unmatched visibility and precise target detection, making it an essential tool for anglers.
- Physical Dimensions:
  - 340 x 100 x 250 mm (excl. connectors)
  - 378 mm D (incl. connectors)
  - 13.4 x 3.9 x 9.8 in (excl. connectors)
  - 14.8 in (incl. connectors)
- Mounting Type: Bulkhead
- Weight: 4.7 kg (10.4 lbs)
- Electrical:
  - Max Power Consumption: 85W
  - Typical Power Consumption: 23 W
  - Recommended Fuse Rating: 5A
  - Supply Voltage: 12 or 24 V (10.4 - 31.2 V)
- Environment:
  - Humidity: Up to 95% at 35°C (95°F) non-condensing
  - Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
  - Shock Vibration: According to IEC 60945
  - Storage Temperature Range: -30°C to +70°C (-22°F to 158°F)
  - Waterproof Rating: IPX5
- Connectivity:
  - Ethernet Ports: 1 x 100 Mbps
  - N2K PG Ns: No
- Approvals Compliance: EMC Directive 2014/30/EU
- Radar Output Power: Up to 3 kW depending on transducer
- Interface: Ethernet 1 x 100 Mbps
