SKU:
TN 00440982
€ 516,65
1-2 weeks delivery time
-
+
The NASA Electromagnetic Log with Data Box and Target EM Log Display delivers precise boat speed data with a 0.1-knot resolution and no moving parts. It includes NMEA0183 outputs and is available as a data box with sensor or complete system, operating on 12 Volts.
- Description
- Ask a Question
-

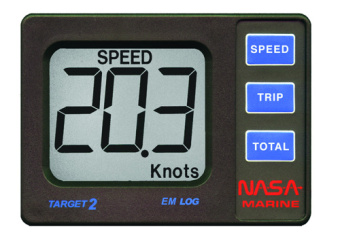

NASA Electromagnetic Log + Data Box + Target EM Log Display
The NASA Electromagnetic Log and Speed data box EML-2 measures boat speed accurately using an electromagnetic sensor with no moving parts. It generates an alternating magnetic field under the boat and measures the electric field generated by the boat’s motion through the water. The EML-2 box consistently calculates boat speed, trip, and total distance with a 0.1-knot resolution over a range of 0.2 to 40 knots. This system includes an NMEA0183 VLW + VHW output for easy connection to instruments or computers.
- Order number: 00440982
- Supplier code: EML-2 + Tar EM log
- Barcode: 735850166728
- Dimensions: 132 x 98 x 30 mm
- Voltage: 12 Volts
- Power consumption: 80 mAh
- Cable length (sensor): 5 m
- Skin throughput: 50 mm
- Available as: Data box with sensor or complete Target system
-
