SKU:
TN 00440981
€ 516,65
1-2 weeks delivery time
-
+
The NASA Electromagnetic Log with Data Box and Clipper EM Log Display provides accurate boat speed measurement with no moving parts and outputs NMEA0183 signals. It features a compact design, runs on 12 Volts, and includes a sensor cable for installation.
- Description
- Ask a Question
-

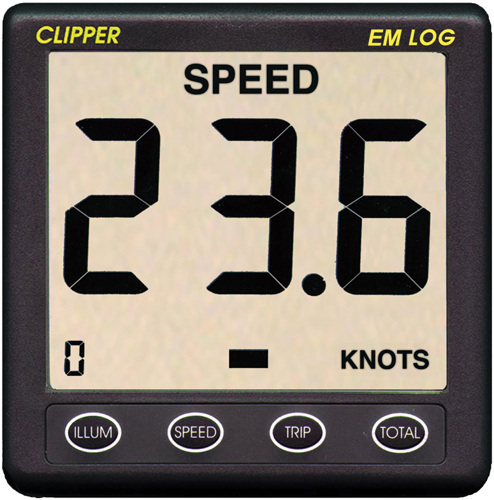

NASA Electromagnetic Log + Data Box + Clipper EM Log Display
The NASA Electromagnetic Log and Speed data box EML-2 provides accurate boat speed readings without the need for moving parts. The sensor generates an alternating magnetic field under the boat, and the resulting electric field is measured as the boat moves through the water. The data box calculates boat speed, trip, and total distance with a high resolution of 0.1 knots, operating within a range of 0.2 to 40 knots. It is equipped with an NMEA0183 VLW + VHW output for easy connection to NMEA0183-compatible instruments or computers.
- Order number: 00440981
- Supplier code: EML-2 + Clip EM log
- Dimensions: 110 x 110 x 27 mm
- Voltage: 12 Volts
- Power consumption: 80 mAh
- Cable length (sensor): 5 m
- Skin throughput: 50 mm
- Available as: Data box with sensor or complete Clipper system
-
