SKU:
TN 00440978
€ 372,36
1-2 weeks delivery time
-
+
The NASA Electromagnetic Log and Data Box (EML-2) measures boat speed through water without moving parts, using an alternating magnetic field sensor. It calculates speed, trip, and total distance with 0.1-knot resolution and offers NMEA0183 output for system integration, powered by 12 Volts.
- Description
- Ask a Question
-

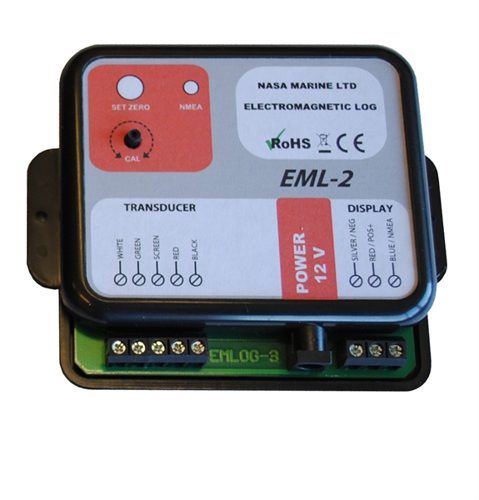

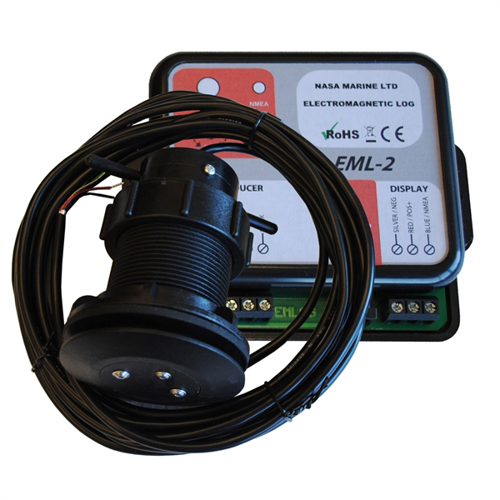

NASA Electromagnetic Log + Data Box

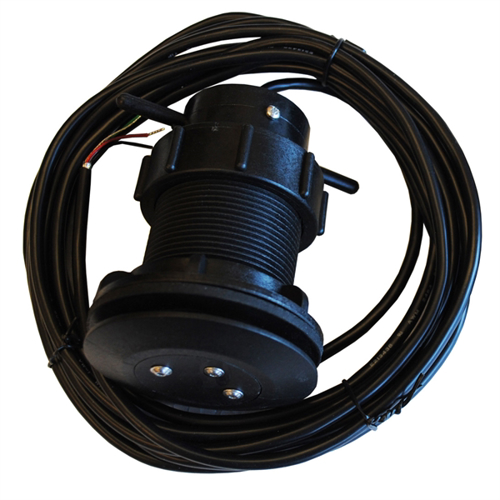

The NASA Electromagnetic Log and Data Box (EML-2) is a robust and accurate tool for measuring boat speed through the water without moving parts. The system uses an alternating magnetic field generated under the boat to measure the electric field produced as the boat moves. It calculates speed, trip, and total distance with a high level of accuracy and a resolution of 0.1 knots, ranging from 0.2 to 40 knots. The data box offers NMEA0183 outputs (VLW + VHW) for integration with other systems.
- Order number: 00440978
- Supplier code: EML-2
- Barcode: 735850166773
- Model: Data box + sensor
- Voltage: 12 Volts
- Power consumption: 80 mAh
- Cable length sensor: 5 m
- Sensor skin throughput: 50 mm
-
