SKU:
TN 00440986
€ 709,83
1-2 weeks delivery time
-
+
The NASA Clipper Duet with Electromagnetic Transducer combines depth sounding and speed measurement, displaying depth from 80 cm and speed in various units. It uses an electromagnetic transducer suitable for polyester hulls, delivering precise speed readings without moving parts. No repeaters are available for this model.
- Description
- Ask a Question
-

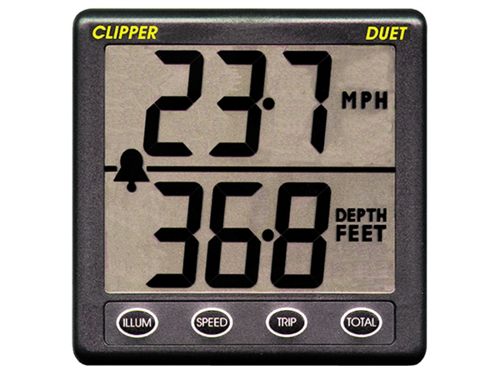

NASA Clipper Duet incl. Electromagnetic Transducer
This instrument combines a depth sounder, speedometer, and log, allowing simultaneous reading of depth and speed. Depth measurement starts from 80 cm, displayed in meters or feet, with a shallow alarm and keel depth adjustment. Speed, trip, and total distance are indicated in km/h, mph, or knots with an adjustable speed alarm.
- Supplied complete with an electromagnetic velocity transducer suitable for installation on most polyester hulls (not suitable for metal hulls).
- The EML-3 electromagnetic transducer measures boat speed through water without moving parts by generating an alternating magnetic field beneath the boat and measuring the resulting electric field created by the boat's movement.
- Robust and accurate sensor with 0.1 knot resolution over a range of 0.2 to 40 knots.
- Interface converts sensor signals into pulse outputs to connect with the Clipper Duet display.
- No repeater(s) possible on the NASA Clipper Duet.
- General Information:
- Order number: 00440986
- Supplier code: CLIP-DUET-EM
- Model: EML3 Duet
- Dimensions (WxHxD): 110x110x27 mm
- Voltage: 12 Volts
- Power consumption: 80 mAh
- Cable length sensor: Log 5 m / Depth 7 m
- Cable length: 7 m
- Installation dimensions (WxH): 87x67 mm
-
