SKU:
TN 00440803
€ 456,14
1-2 weeks delivery time
-
+
The NASA Clipper Compass is an electronic compass with a fluxgate sensor that offers accurate true or magnetic heading readings, automatic calibration, a large display with adjustable lighting, and NMEA 183 output for data sharing.
- Description
- Ask a Question
-

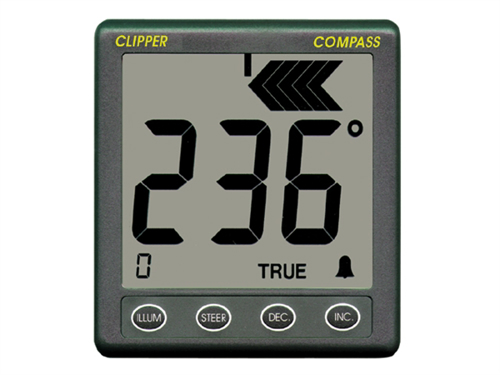

NASA Clipper Compass
The NASA Clipper Compass is a fully electronic compass that features a fluxgate sensor. It has a large, clear display with seven lighting levels and shows either True or Magnetic heading. The sensor is gimbally suspended to handle ±30° of pitching and rolling and is strategically mounted to minimize stray magnetic fields. Automatic electronic calibration removes small errors.
- Steering to Course Function: Displays segments to indicate steering errors, helping you stay on course. The user can pre-set steering sensitivity. An alarm sounds if the rate deviates beyond a preset threshold, ensuring safety when you are not at the helm.
- Heading accuracy: ±1°, with true and magnetic north indications.
- Includes Nasa fluxgate sensor and 10-meter cable.
- Maximum inclination: 45° with 8-level electronic cushioning.
- NMEA 183 output for data transfer to other devices.
General Specifications:
- Order Number: 00440803
- Supplier Code: CLIP-CMPS
- Barcode: 609722871174
- Dimensions: 110x110x27 mm
- Voltage: 12 Volts
- Power Consumption: 40+10 mAh
- Cable Length: 10 meters
- Installation Dimensions: 87x67 mm
-
