SKU:
TN 00440983
€ 300,22
1-2 weeks delivery time
-
+
The NASA Clipper BM1 Li is a battery monitor tailored for 12 Volt LiFePO4 battery systems, providing detailed tracking of charging and discharging currents, voltage, state of charge, and time estimates to optimize battery use and longevity. It features an easy installation and a precise 50-millivolt, 100-amp shunt for accurate measurements.
- Description
- Ask a Question
-

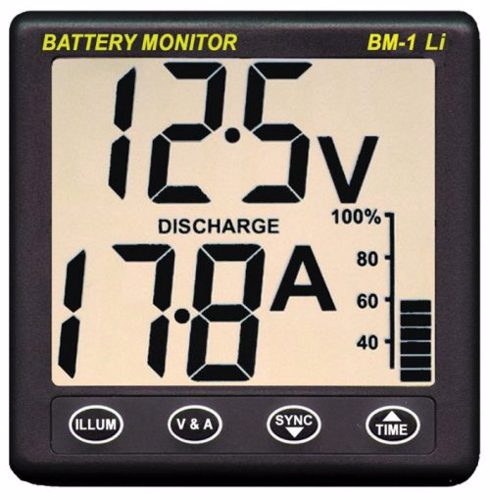

NASA Battery Monitor - Clipper BM1 Li - (12VDC)
The NASA Clipper BM1 Li is designed specifically for 12 Volt LiFePO4 battery systems. It provides comprehensive monitoring of both charging and discharging currents, voltage levels, state of charge, and time estimates for charging or discharge cycles. With this data, users can optimize battery usage, extend battery life, and minimize the risk of malfunction. The monitor is easy to install and includes an accurate 50-millivolt, 100-amp shunt for precise measurements.
- Order Number: 00440983
- Supplier Code: CLIP BM1 Li
- Barcode: 735850166711
- External Stock: NASA Battery Monitor
- Voltage: 8-16 Volts
- Battery Capacity: 20-600 Ah
- Dimensions (WxHxD): 110x110x27 mm
- Installation Dimensions (WxH): 87x67 mm
- Power Consumption: 1.5 mAh
- Charging Current Maximum: 100 A
- Discharge Current Maximum: 100 A
- Cable Length: 5 m
-
