SKU:
TN 00440819
€ 300,22
1-2 weeks delivery time
-
+
The NASA AIS Engine 3 Black Box is a specialized AIS receiver that transmits signals to a PC via NMEA 0183, supports all Class A and B AIS messages, and connects to a VHF antenna with a BNC connector for detailed marine navigation data.
- Description
- Ask a Question
-

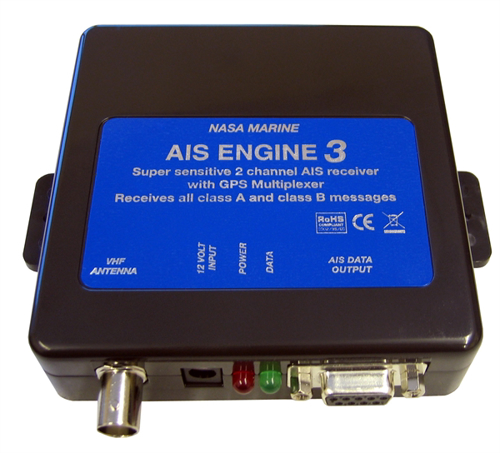

NASA AIS Engine 3 Black Box

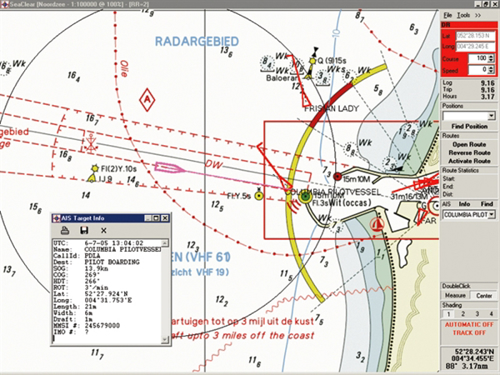

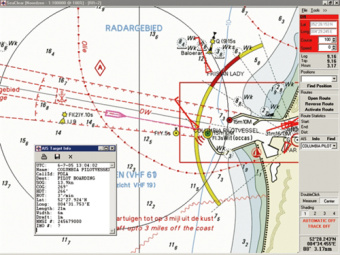

The NASA AIS Engine 3 Black Box is a specialized receiver designed to capture AIS signals and transmit them to your PC. It connects to a separate VHF antenna via a BNC connector (remember not to use a splitter) and to a GPS for position, course, and speed data via an NMEA 0183 connection. With compatible PC navigation software that supports AIS expansion modules, you can visualize the AIS signals on an electronic nautical chart. The included free software, Sea Clear, allows you to use scanned nautical charts, making AIS "echoes" visible with ship names. An info screen also displays the transmitted data for each AIS signal received.
- LED indicator for power and reception status
- Output: NMEA 0183 (38400 Baud)
- Supports all Class A and B AIS messages
- Antenna input: 50 Ohm BNC connector
- Data connector: 9-pin type D
- Mounting: 2 screws
- Frequency: 162.025 / 161.975 MHz
- Dimensions: 115 x 100 x 30 mm
- Voltage: 10-16 Volts
- Power consumption: 43 mAh
- Order number: 00440819
- Supplier code: AIS-ENG
- Barcode: 609722871242
-
