SKU:
CN GK1105EM1L010T
€ 21.573,06
1-2 weeks delivery time
-
+
The Nanni Generator Type QLS10T is powered by a 4-stroke diesel engine and designed for marine and industrial applications. It features a cast iron tunnel-type engine block, a Super Glow System for easy starts in cold conditions, and an efficient E-TVCS injection system. The generator provides 7 kW of continuous power and a maximum output of 7.9 kW at 400V with IP23 protection.
- Description
- Ask a Question
-

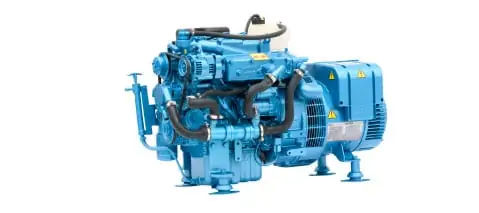

Nanni Generator Type QLS10T
This generator is powered by a 4-stroke diesel engine, rigorously tested in marine and industrial applications globally.
- Engine Block: Tunnel-type, made from cast iron, with a timing gear.
- Injection and Combustion System: Features the Super Glow System, ensuring easy engine starts even in cold temperatures. The E-TVCS injection system optimizes the air/fuel mixture by creating three vortexes in the combustion chamber, which enhances combustion efficiency and reduces fuel consumption.
- Cooling System: Cooling is provided through a heat exchanger that transfers heat between the coolant and seawater or via a Keel Cooling system. The seawater pump has a rubber impeller for efficient cooling.
- Generator: Delivers a continuous power output of 7 kW, with the ability to provide up to 7.9 kW at a three-phase 400V voltage. It comes with IP23 protection, with additional protection available on request.
Product Specifications
- Power (max/continuous): 7.9 kW / 7.0 kW
- RPM: 1500 rpm
- Voltage: 400 V
- Current: 11.5 A
- Frequency: 50 Hz
- Weight: 230 kg
-
